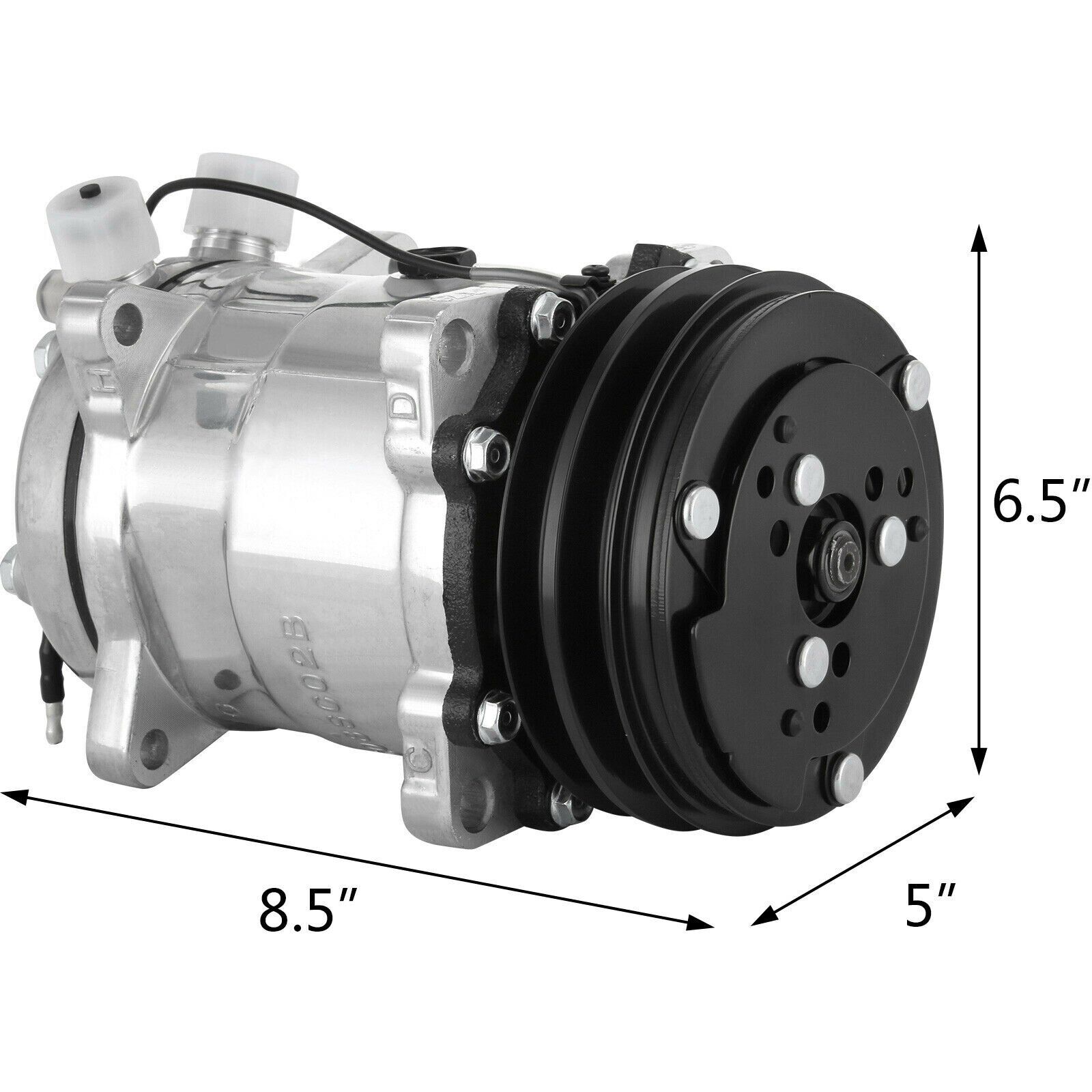

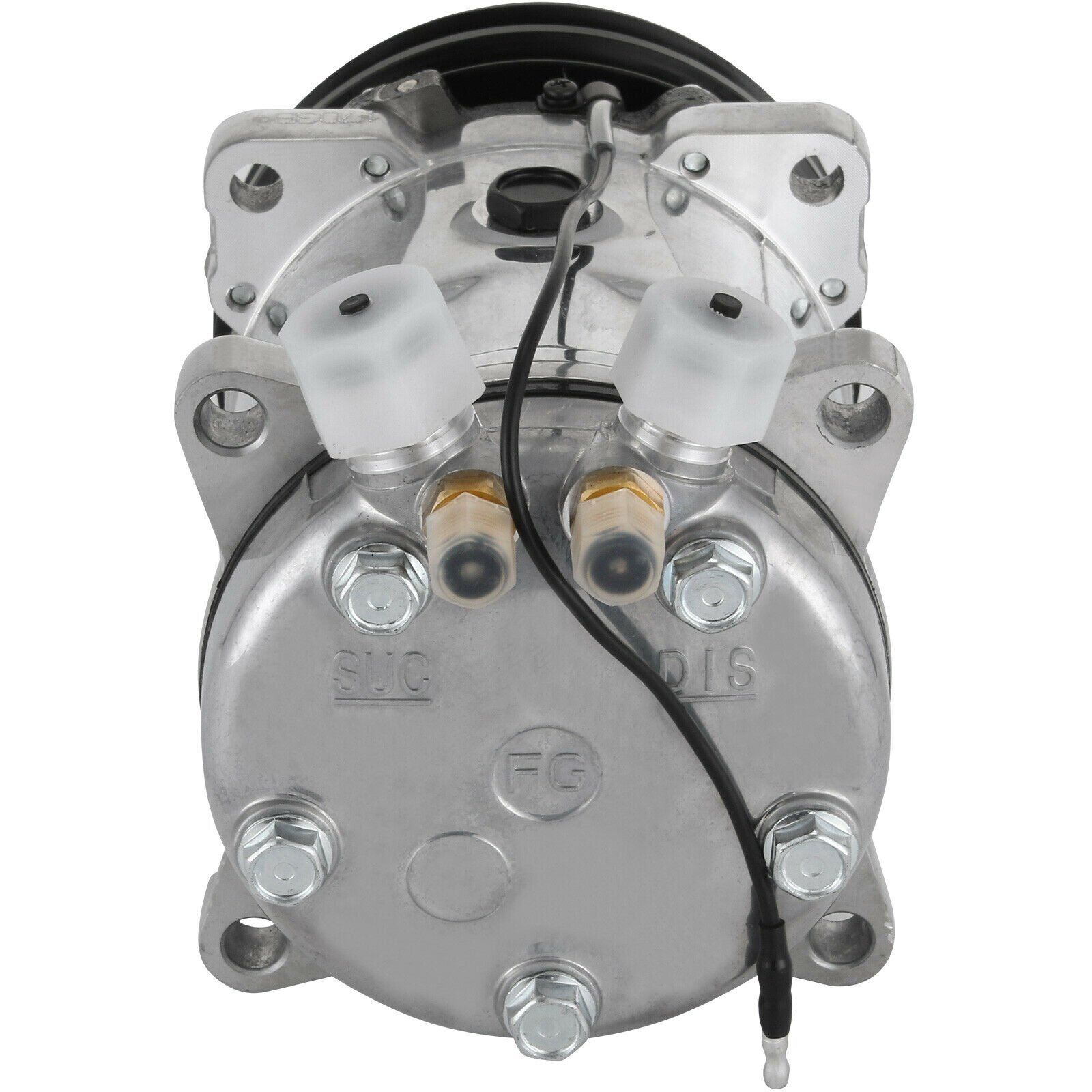

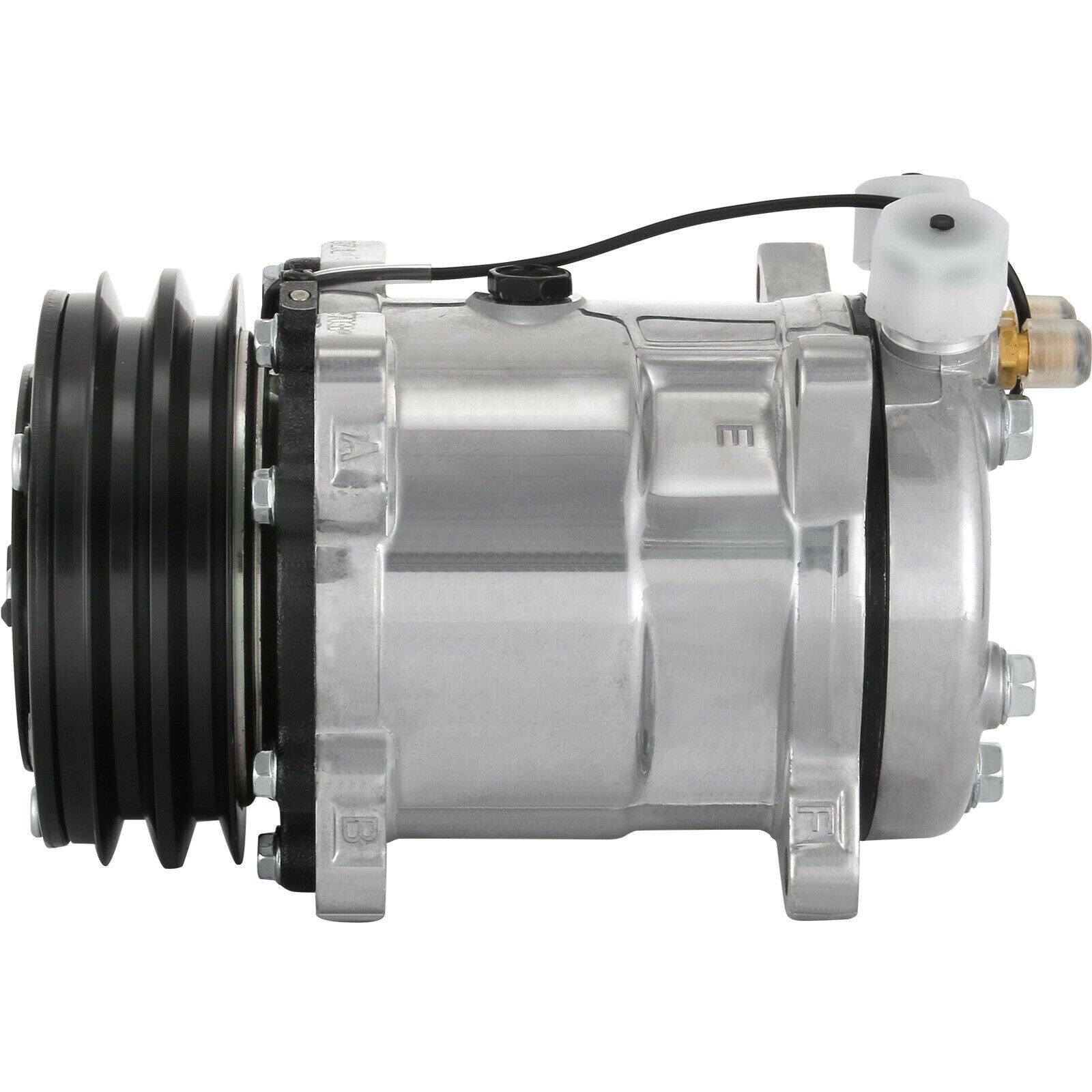

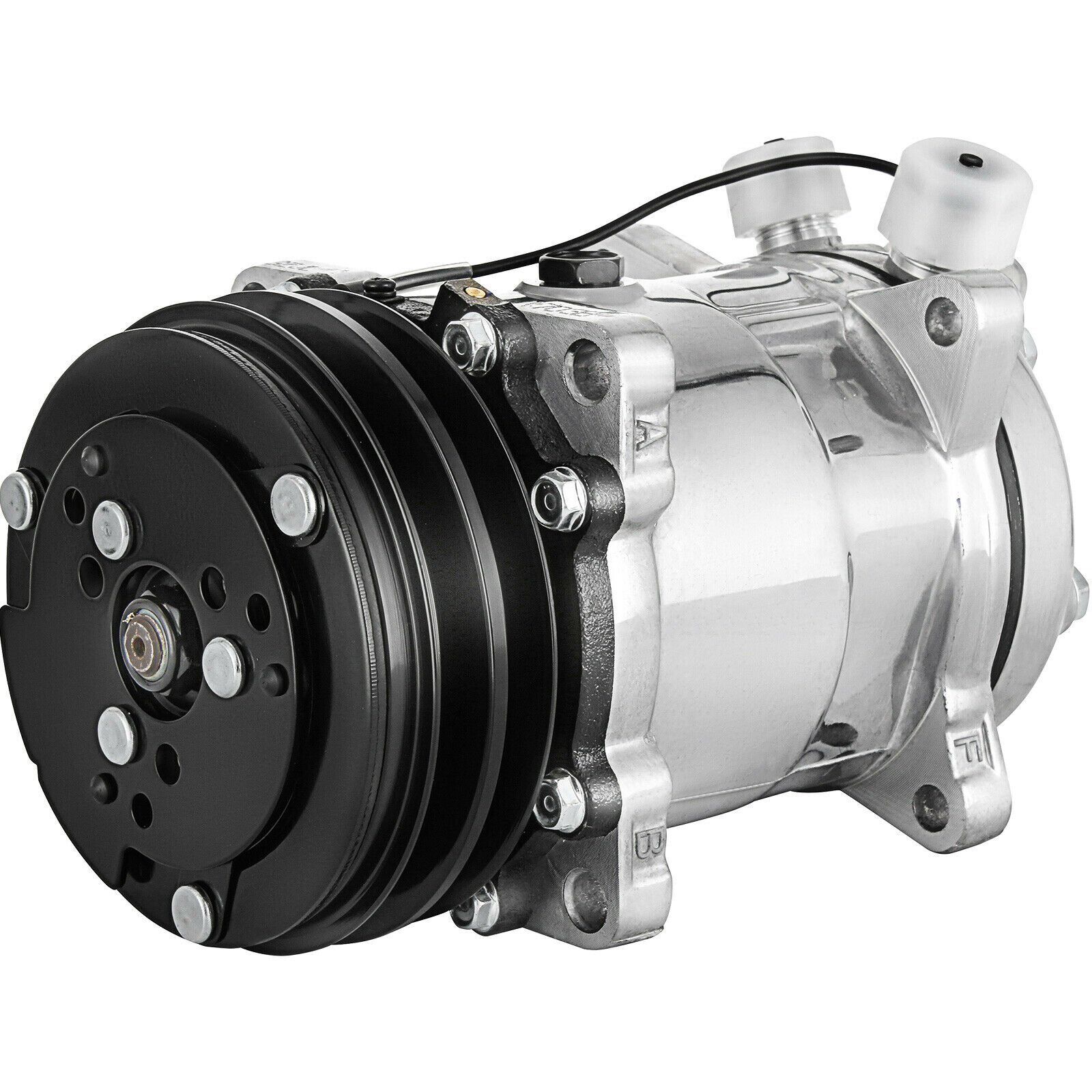

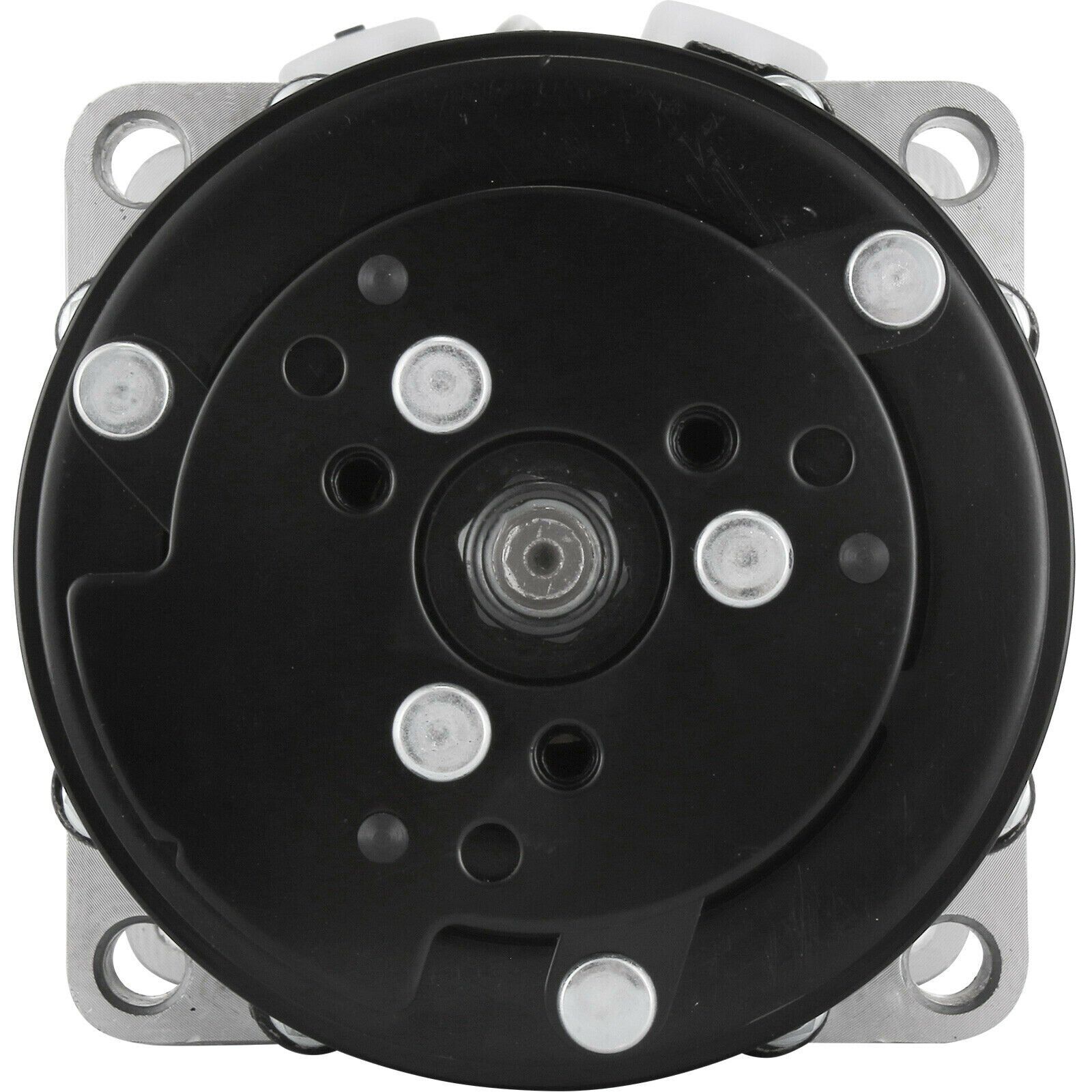

Name: KAX® 1985-1987 Jeep Cherokee 2.1L(More Available) A/C Compressor With Clutch SD508
Brand: KAX
SKU: 8579EWL166JUS
Price: 161.58 USD
Availability: InStock

KAX® 1985-1987 Jeep Cherokee 2.1L(More Available) A/C Compressor With Clutch SD508

(0)

SKU: 8579EWL166JUS

Product Specifications

Replaces Part Number

58551, 4798258, 9285SAN, ABPN83304832, 0658581, 618551, 611040017, 611040028, 57974, 3916160, 2010106

Brand

‎KAX

Pulley Grooves

2 Grooves

Voltage

12V

AC Compressors

Compressors are the heart of the A/C system, with a heavy responsibility to pump A/C refrigerant throughout the automobile’s A/C system. We take the upmost care when developing new compressors. We always make sure that our new compressors meet exact specifications, When you purchase a new compressor from Topcn, you are receiving a high quality product at price that is very affordable.

Feature

-STRONG COOLING FUNCTION- The auto ac compressor can provide sufficient pressure, which increases power force and decreases engine load. It greatly improves the cooling function. Features as high and stable efficiency, safety, and reliability.

-LOW NOISE and LOW FUEL CONSUMPTION- Ac compressor works great and has low noise for a better experience. With a lower load factor, low power will be input when driving

Fitment

1985-1987 Jeep Cherokee 2.1L

1984-1984 Jeep Cherokee 2.5L

1985-1986 Jeep CJ7 2.5L

1986-1987 Jeep Comanche 2.1L

1989-1990 Jeep Wrangler 2.5L

1987-1990 Jeep Wrangler 4.2L

Interchange Part Number:

CO 9537C, CO 9285C, J3741284, 4798258, 9285, SD508

Note

Be sure to clean the air conditioning system before installation, otherwise it will cause compression broken.

Installation Method

1. Remove compressor:

Remove the A/C belt from the A/C compressor pulley. May involve loosening the belt tensioner (if equipped).

2.receiver drier or accumulator, orifice tube or expansion valve.

3.Disconnect the negative battery cable.

4.Remove the bolt that secures refrigerant lines to the A/C compressor. Inspect A/C lines for any contamination such as metal or excessive dirt inside of them. If you find any contamination the system will need to be cleaned.Flush the condenser and evaporator using NON-OIL BASED A/C flush. On expansion valve systems. The valve must be removed before the evaporator can be flushed. Flushed condensers from outlet to inlet and evaporators from inlet to outlet.

5.Drain all the oil from the new compressor ,if you compressor has a drain plug you will need to open it up and drain what oil is in there too.

6.Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to insure front seal and other internal parts are lubricated.

7.Install new receiver drier or accumulator and new orifice tube or expansion valve.

8.Evacuate the A/C system for a minimum of one hour.

9.After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout the system.

10.Turn on the A/C system with the engine running and check to see if cold air is now coming out of the air duct.

11.If the A/C system is functioning ,you may find that your electric radiator fan and compressor clutch will be cycling off and on depending on the outside air temperature

Package Included:

1 x A/C Compressor with Clutch（Professional Installer is Highly Recommended ）
