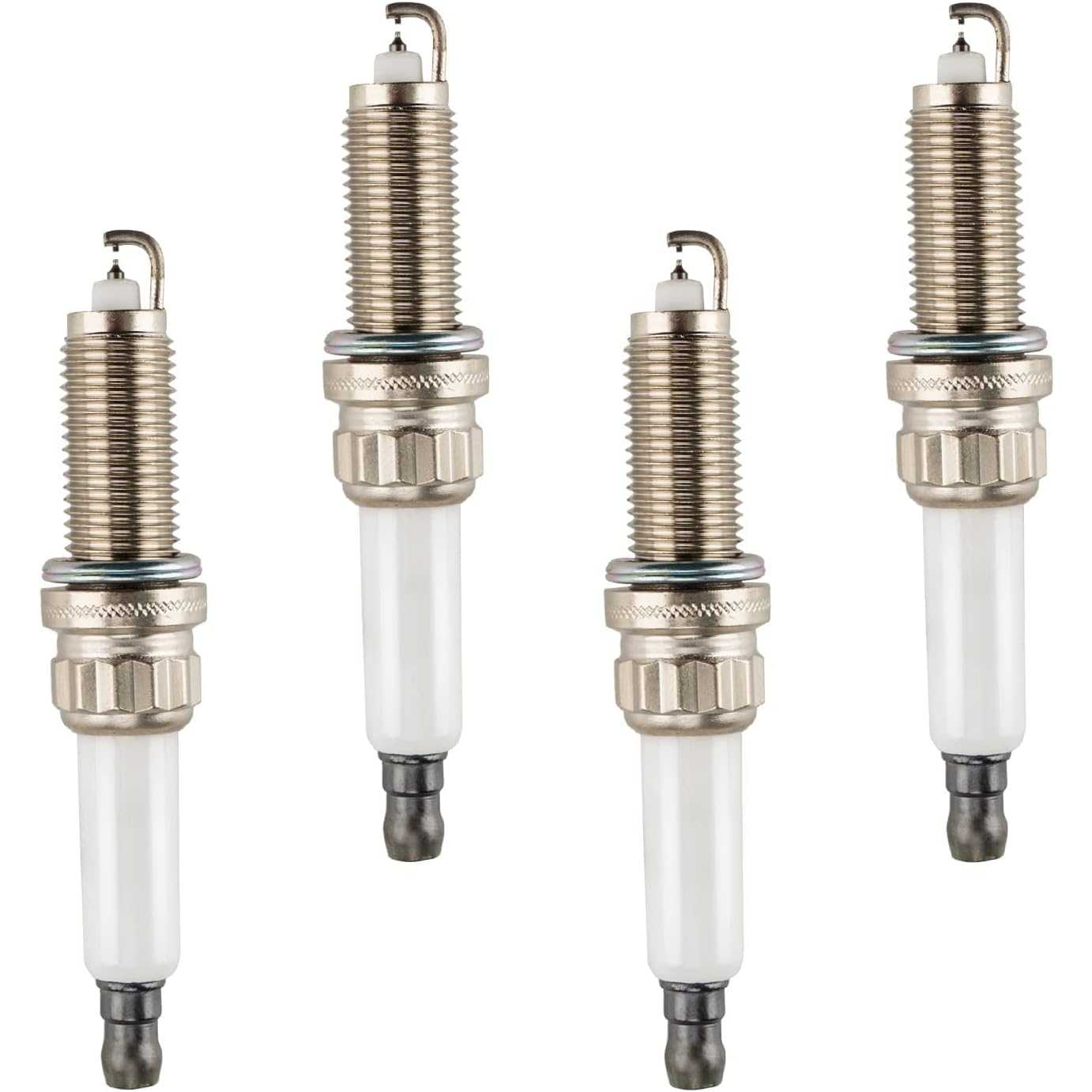

PHILTOP® 97506 (SILZKBR8D8S) Double Iridium Spark Plugs 4PCS for X1, X3, X5, X6, 320i, 320i xDrive, 328i, 328i xDrive

Name: PHILTOP® 97506 (SILZKBR8D8S) Double Iridium Spark Plugs 4PCS for X1, X3, X5, X6, 320i, 320i xDrive, 328i, 328i xDrive
SKU: 63ISSPP0031US
Price: 25.99 USD
Availability: InStock
Rating: 5 (3 reviews)

(3)

SKU: 63ISSPP0031US

Check if this fits your vehicle

Quantity

Replaces Part Number

SILZKBR8D8S, 97506, 12120039664, 8165, 12120040573, 12127622445, SILZKBR8E8S, APP5324, SILZKBR8C8S, 7429

Brand

‎PHILTOP

Part

Spark Plug

Center Electrode Core Material

Copper

Center Electrode Tip Material

Iridium

Ground Electrode Core Material

Metal

Ground Electrode Tip Design

Square Platinum Electrode - High Ignitability

Ground Configuration

Standard

Ground Electrode Quantity

Electrical Terminal Type

Non-Removable Nut

Pre-Gap Size

.030 in/0.762 mm

Resistance

5000 Ohms

Hex size

9/25 in/14.00 mm

Insulator Height

50.00 mm

Manufacturer Heat Range

Seat Type

Flat

Reach

1.043 in/26.50 mm

Thread Diameter

12.00 mm

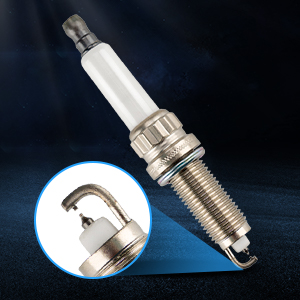

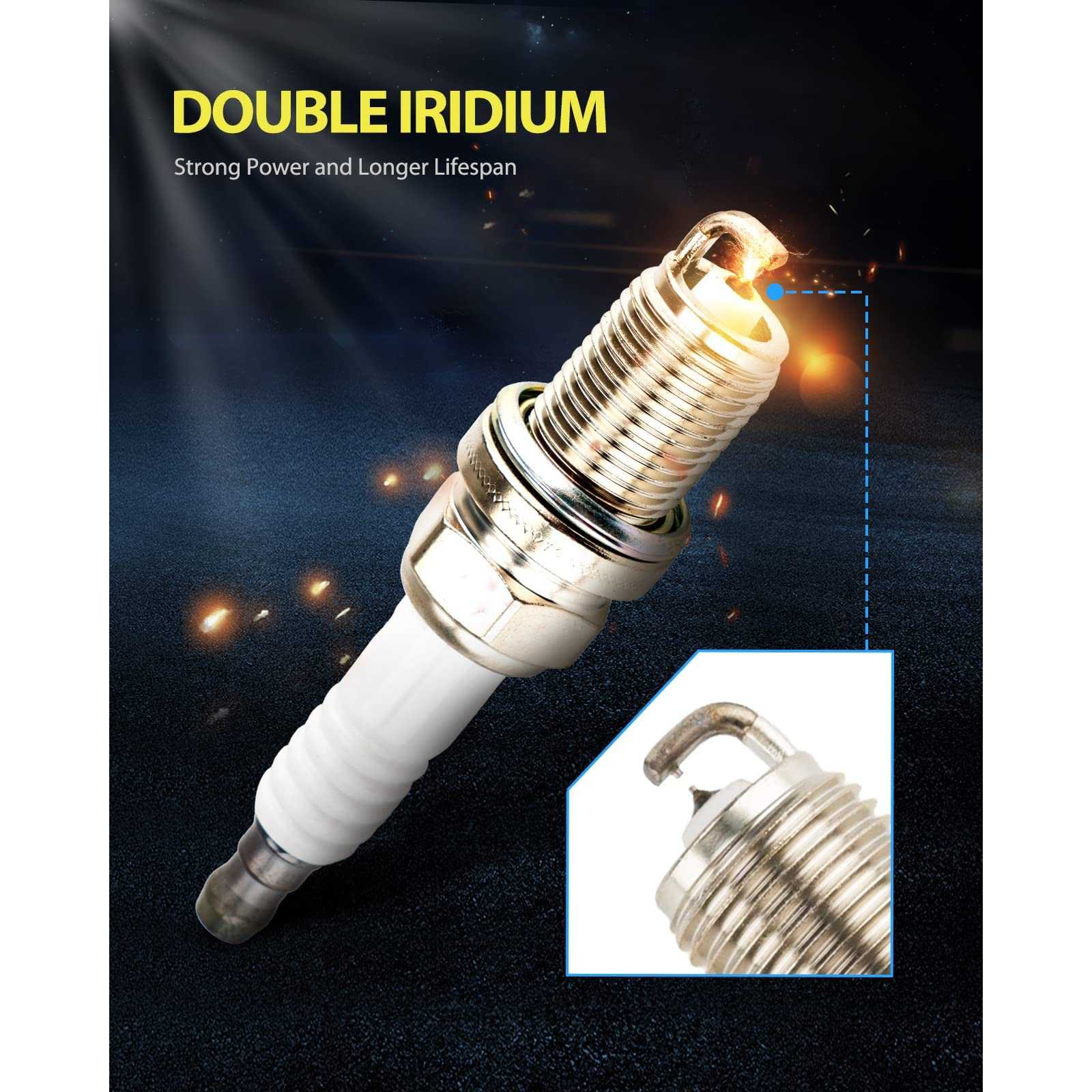

[Faster Starts] The double iridium spark plug enhances the center electrode design, concentrating spark energy and improving vehicle ignitability. It leads to smoother engine operation and eliminates misfire concerns.

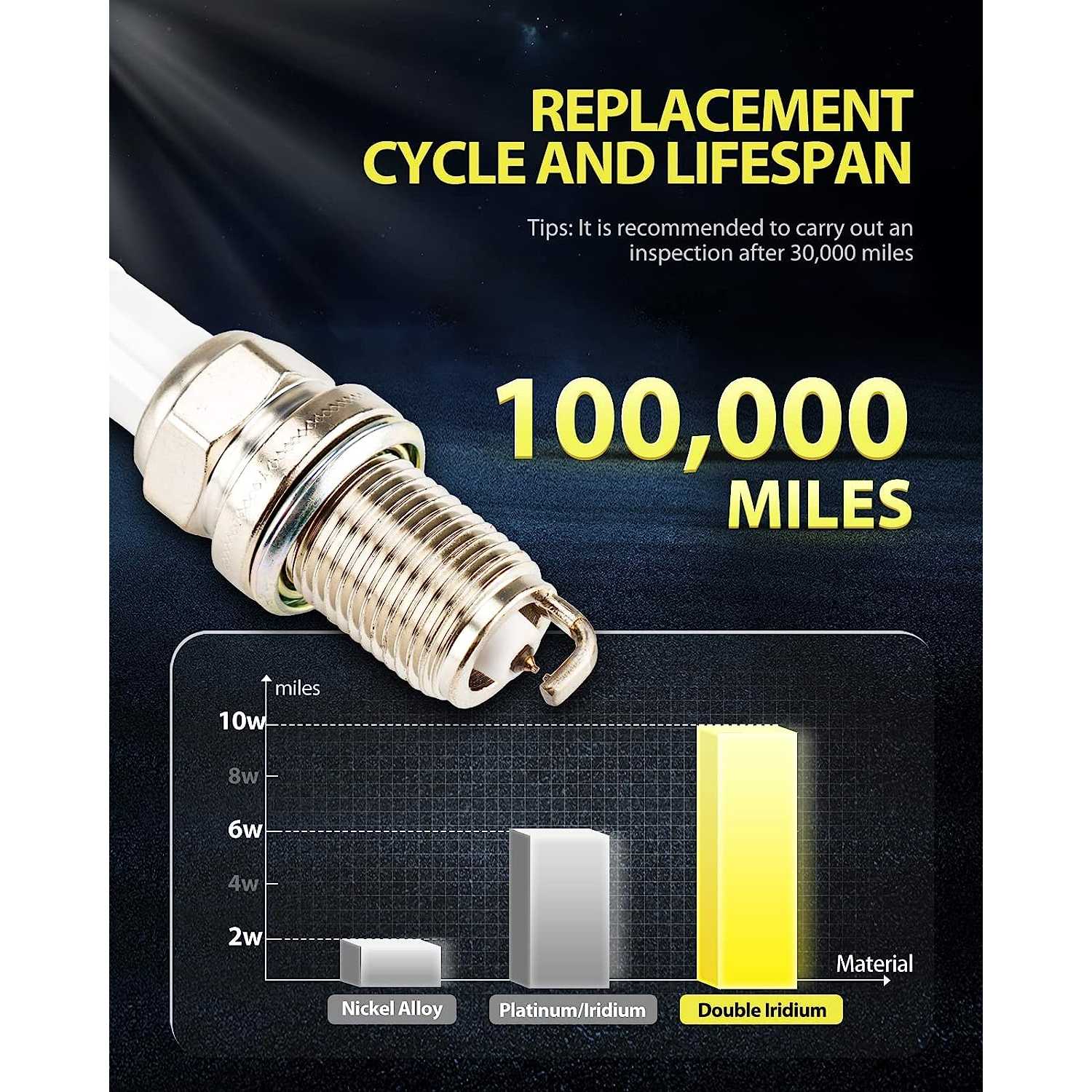

[Longer Lifespan] PHILTOP automotive spark plugs feature double iridium construction for durability and resistance to heat and corrosion. They effectively burn off carbon deposits, extending the plug's lifespan.
[Fuel Economy] The 0.8mm fine wire iridium center wire tip design promotes optimal combustion and reduces carbon buildup. The external sealing gasket prevents gas leakage, enhancing fuel efficiency.
[Trivalent metal coating] The spark plug offers high temperature durability and robust construction, with excellent resistance to corrosion and seizure, ensuring easy installation and disassembly.
[Solid copper core] 98% pure copper core provides excellent heat dissipation, conductivity and ultra-wide thermal range.

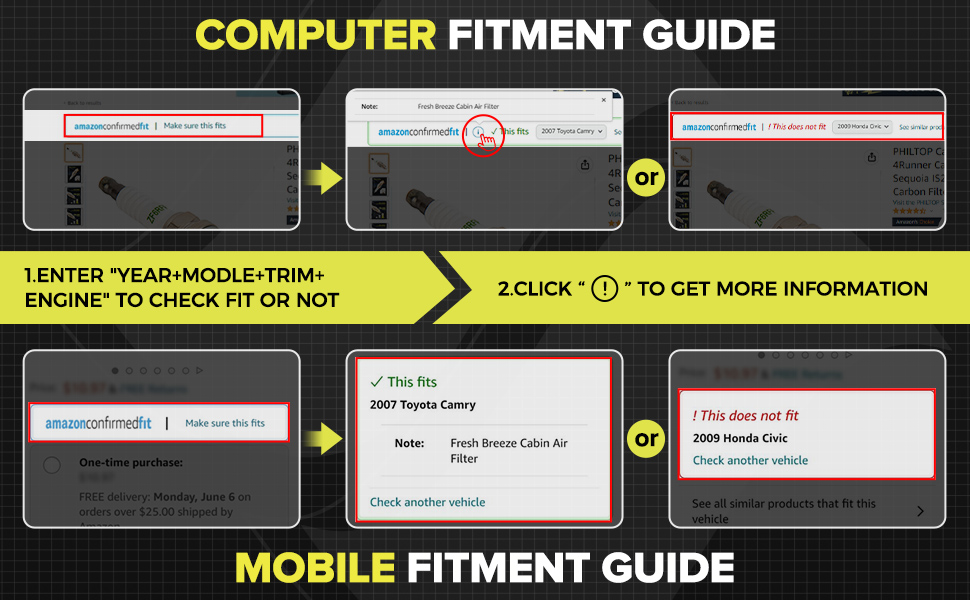

Please confirm that the spark plug fits your vehicle (Year+Make+Model+Engine Size) before buying!
Make sure that the ignition gap is correctly selected before purchasing!
A recommended is ignition coil and spark plug be replaced together to avoid common dysfunctions!

Reference Part NO#:

12120039664, 12120040573, 12127622445, 96987

PHILTOP Iridium Spark Plug SPP003

Compatible with:

X5 2011-2018

X3 2011-2017

328i 2012-2016

328i xDrive 2013-2016

X1 2013-2015

535i 2011-2016

320i 2013-2018

535i xDrive 2011-2016

528i 2012-2016

For more models, please match fitment to confirm! (Preset Gap: 0.8mm)

Why Choose PHILTOP Double Iridium Spark Plug?


Reduce Carbon Formation The iridium metal electrode and the appropriate ignition gap increase the charge accumulation effect, improve the ignition path, and make the fuel mixture burn more fully, thereby reducing carbon deposition	Rapid Ignition Sophisticated electrode design provides more excellent and reliable ignition performance for the car, higher ignition efficiency, faster start-up of the car, and more stable and smooth acceleration	Improved Fuel Economy Iridium metal electrodes better increase combustion efficiency, enhance vehicle power performance better, better save fuel consumption, be economical	Avoid Abnormal Shaking The acceleration is smoother, the idle speed is more stable, and the engine vibration caused by the oxidation of the spark plug is effectively solved so that there is a better driving experience

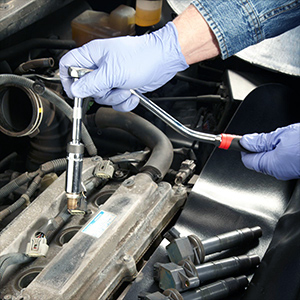

Installation Tips

1. Before removing the old spark plug, please clean the surrounding area to avoid dirt falling into the combustion chamber when the spark plug is taken out

2. Gentle action is required when removing the high-voltage wire connector, and avoid shaking the spark plug vigorously, so as not to damage the performance of the spark plug

3. Disassembled spark plugs one by one.

4. Do not skew when installing the spark plug.

5. Use a torque wrench to tighten according to the specified torque. Don't use electric tools.

6. The spark plug should be kept clean, dry, and free of oil, otherwise it may cause faults such as electric leakage.

X5	2011-2018
X3	2011-2017
328i	2012-2016
328i xDrive	2013-2016
X1	2013-2015
X6	2011-2019
X4	2015-2018

320i/320i xDrive	2013-2018
535i/535i xDrive	2011-2016
528i/528i xDrive	2012-2016
428i/428i xDrive	2014-2016
428i Gran Coupe/xDrive	2015-2016
335i/335i xDrive	2011-2015
650i/650i xDrive	2013-2018

M2	2016-2020
M3	2015-2018
M4	2015-2020

M5	2013-2016
M6	2012-2018
Z4	2012-2016
