Fault code P2453 is a critical warning that requires immediate attention. Whether you drive a Volkswagen, Audi, BMW, or Mercedes-Benz, ignoring this alert could result in catastrophic engine damage, costly repair bills, or even regulatory penalties for failing to meet emissions standards. In this guide, we'll dissect the P2453 fault code from every angle. We'll explore the causes, symptoms, and recommended fixes for this fault code to help you maintain the efficiency and reliability of your diesel engine.
- Code meaning: DPF Pressure Sensor "A" Circuit Range/Performance
- System affected: Diesel particulate filter (DPF) monitoring and regeneration control
- Common causes: faulty pressure sensor, blocked or damaged pressure hoses, wiring or connector problems, clogged DPF, failed regeneration
- Common symptoms: check engine light, limp mode, reduced performance, poor fuel economy, regen issues
- Can you keep driving? Sometimes, yes for a short period, but the issue should be diagnosed as soon as possible
- Typical fix: inspect hoses and wiring, test the sensor, evaluate DPF restriction, repair the root cause, then clear the code and retest
- Does P2453 mean the DPF is bad? No. A restricted DPF is one possible cause, but the sensor, hoses and electrical circuit should be checked before replacing the filter.

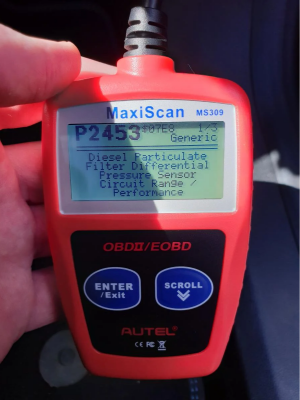

What Is the P2453 Code?
Definition : P2453 refers to a Diesel Particulate Filter (DPF) Pressure Sensor "A" circuit range/performance fault.
Meaning : The PCM (Powertrain Control Module) has detected a voltage reading from the DPF pressure sensor that is outside of the acceptable range; DPF Regeneration Pressure, signal out of tolerance/ too high .

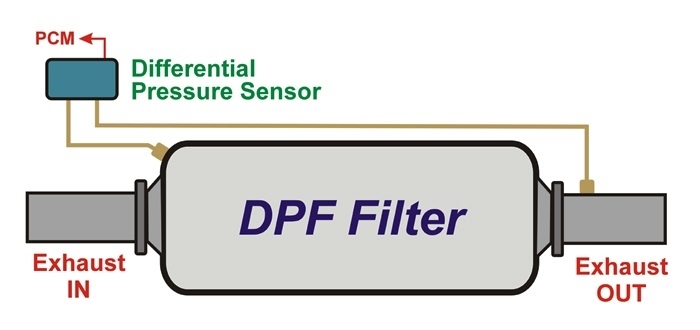

What the DPF Pressure Sensor Does?
The DPF pressure sensor measures the pressure difference across the diesel particulate filter. The PCM uses this data to determine:
- how restricted the DPF has become
- when regeneration is needed
- whether regeneration is working properly
- whether the exhaust aftertreatment system is operating within normal limits
If the pressure reading is too high, too low, inconsistent, or outside the expected range, the PCM may store code P2453.
Key Components Involved:
Diesel Particulate Filter (DPF) : Traps soot and particulate matter from diesel exhaust to reduce emissions.
Pressure Sensor "A" : Monitors differential pressure across the DPF to determine when regeneration is needed.
PCM (Powertrain Control Module) : Receives data from the DPF sensor to manage the regeneration process.
Symptoms of the P2453 Fault Code
If your vehicle triggers the P2453 fault code, you may notice the following symptoms:
- The check engine light illuminates.
- Reduced engine performance or limp mode.
- Increased exhaust smoke and black smoke.
- Poor fuel economy and increased fuel consumption.
Ignoring these symptoms may lead to further complications, such as damage to the diesel particulate filter (DPF) or catalytic converter.
Causes of the P2453 Code
A variety of factors can trigger this fault code. Here are the most common causes:
1. Faulty DPF Pressure Sensor
The sensor may fail internally or send unstable readings due to age, contamination, heat damage, or electrical problems.
2. Blocked or Damaged Pressure Hoses
This is one of the most overlooked causes. The pressure hoses or tubes leading to the sensor can become:
- clogged with soot
- blocked by moisture or condensation
- cracked
- melted by excessive heat
- disconnected
Any of these issues can distort the pressure signal and trigger P2453.
3. Damaged Wiring or Connectors
Corroded terminals, broken wires, poor pin contact, shorts, or open circuits between the sensor and PCM can all cause an incorrect sensor signal.
4. Clogged or Failing DPF
If the DPF is heavily loaded with soot or ash, the pressure differential across the filter may become excessive, causing the PCM to flag a range/performance issue.
5. Failed or Incomplete Regeneration
If the DPF cannot regenerate properly, soot loading can increase until pressure readings move outside the expected range.
6. Exhaust System Leaks or Restrictions
Leaks, restrictions, or installation problems in the exhaust system may affect sensor readings or DPF performance.
7. Rare PCM or Reference Voltage Issues
In some cases, the problem may involve PCM software, sensor reference voltage, or another less common control-side fault.
How to Diagnose and Repair P2453 Fault Code
Diagnosing P2453 is not complicated; we can think of it as checking the vehicle's "exhaust breathing system." You can troubleshoot step-by-step, from easiest to most difficult:
Step 1. Prioritize troubleshooting the most common hose issues
Often, the problem isn't with the sensor itself, but with the connecting hoses. Locate the sensor (usually in the engine compartment near the firewall) and inspect the two small connecting hoses. Check for melting, cracking, or blockage by carbon deposits and moisture from the exhaust heat. Replace any damaged hoses; for blockages, use low-pressure compressed air to clear them.
Step 2. Check the wiring and connectors
Next, observe the sensor's wires and connectors. Pay close attention to whether the pins are oxidized and whitened (corroded), whether the connectors are loose, and whether the wire insulation is worn or broken. Repairing these poorly connected wires can resolve a large portion of signal abnormality problems.
Step 3. Test the sensor and read the data
If there are no visible abnormalities, use a diagnostic tool or multimeter for testing. With the key turned but the engine not started, measure the signal line voltage to see if it's within the normal range (usually around 0.5V); or check the "DPF differential pressure" data stream in the diagnostic tool. If the differential pressure data is abnormally high at idle, or the voltage remains constant at 0V or 5V, it indicates that the sensor has internally failed and needs replacement.
Step 4. Assess if the DPF itself is clogged
If the sensor and wiring are normal, consider the DPF (diesel particulate filter) itself. A severely clogged DPF can cause excessively high exhaust back pressure, triggering this fault code. In this case, a "manual forced regeneration" should be performed using a diagnostic tool, or the DPF should be removed and professionally cleaned.
After repair, remember to clear the fault code with a diagnostic tool and test drive the vehicle. It is also recommended to perform a "differential pressure sensor reset/calibration" to ensure the system relearns and returns to normal operation.
How Much Does It Cost to Fix P2453?
| Repair Option | Estimated Total (Parts + Labor) |
| Replace pressure sensor | $150 – $450 |
| Clean or replace pressure hoses | $30 – $150 |
| DPF cleaning (on‑vehicle) | $150 – $600 |
| DPF cleaning (off‑vehicle / deep clean) | $300 – $700 |
| Replace DPF (aftermarket) | $1,900 – $3,200 |
| Replace DPF (OEM) | $2,500 – $8,000+ |
| ECM / control module repair | $450 – $850 |
| ECM / control module replacement | $1,000 – $1,500 |
| DPF delete (hardware + tuning – off‑road/racing only) | $1,000 – $3,700+ |
⚠️ Important: Clogged pressure hoses are the most common and cheapest fix – always check them first.
DPF deletion is illegal for on‑road use in the U.S. under federal law and is only permitted for off‑road, closed‑course racing, or agricultural applications.
Extended Reading: Is DPF Delete an Option?
Some owners consider removing the DPF system (for off‑road or closed‑course racing only) to permanently eliminate codes like P2453 and P2454. This modification:
- Prevents all DPF‑related faults.
- Eliminates regen cycles (saving fuel).
- Reduces exhaust backpressure, potentially improving throttle response.
- Cuts long‑term maintenance costs (sensor replacements, cleanings).
However, you must be aware of the legal and practical consequences:
- In most U.S. states and many countries, removing a DPF from a highway‑registered vehicle is illegal under federal and state emissions regulations.
- It can result in heavy fines and failure of annual inspections.
- It also voids the vehicle’s emissions warranty.
If your vehicle is used exclusively for off‑road, racing, or agricultural purposes, and emissions testing does not apply, then DPF deletion might be a consideration. Always consult local laws and a professional tuner before proceeding.
We recommend exhausting all diagnostic and repair options before considering deletion, as a properly maintained DPF system can provide reliable service for 100,000+ miles.
How to Prevent Future P2453 Faults
To avoid encountering the P2453 fault code in the future, follow these preventative measures:
- Follow the manufacturer's maintenance plan: Stay informed about DPF service recommendations, inspections, and any necessary emissions system maintenance.
- Avoid frequent short trips: Frequent short trips may prevent the exhaust system from reaching the temperatures required for proper regeneration.
- Use high-quality diesel fuel: Inferior fuel increases carbon buildup and stresses the DPF system.
- Troubleshoot regeneration issues early: If you experience frequent regeneration, performance degradation, or DPF warnings, check the system immediately.
- Inspect hoses and wiring during maintenance: Early detection of overheating damage, blockages, or cracks can prevent future sensor range/performance failures.
Final Thoughts
By understanding the P2453 code and its implications, you can take the right steps to diagnose and resolve the issue, ensuring your diesel engine operates efficiently and meets emissions standards. If you're unsure about any step in the process, don’t hesitate to consult a professional mechanic for assistance. Want to see other fault codes? Check out our OBD II code library.
