All About the 9005 Headlight Bulb: An In-Depth Overview

The modern vehicle is filled with a variety of components that work together to provide a comfortable and reliable ride. Among these components are the headlight bulbs, which are designed to help drivers see and be seen while they drive in the dark. One of the most popular types of headlight bulbs is the 9005 bulb. In this article, we will explain all there is to know about 9005 bulbs, including its characteristics, properties, features, and more.

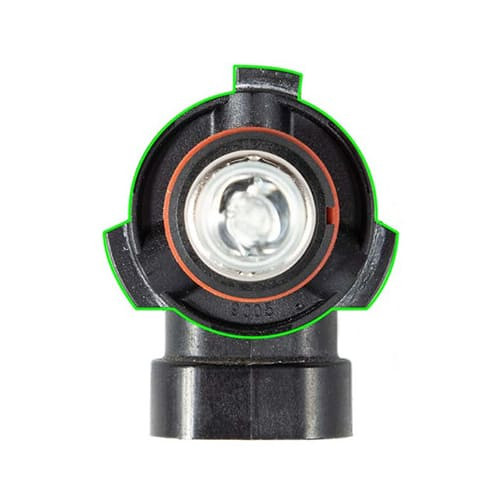

The 9005 bulb is a widely used automotive bulb that primarily serves as a high beam headlight bulb. This bulb size features a single filament and a P20d connector that makes it easy to install. 9005 bulb available in halogen, LED and HID type.

The key advantage of the 9005 bulb is its ability to illuminate a wide area, improving visibility and making it easier to navigate dark or poorly-lit roads, especially on highways. The powerful light output generated by this bulb provides drivers with a clear view of the road ahead. And compared to 9005 halogen bulbs, 9005 LED headlight bulbs emit more brightness.

Note that in the US market, the bulb is referred to as the 9005, while in the European market, it is known as the HB3. Additionally, the 9005 bulb is often interchangeable with other bulb types, such as the H10, H12, 9040, 9055, 9140, 9145, 9150, and 9155.

While the 9005 bulb bears a striking resemblance to the 9006 bulb, with both featuring L-shaped designs and similar dimensions, they are fundamentally different in terms of usage. Specifically, the 9005 bulb draws a higher power level and is predominantly used for high beam lighting, while the 9006 bulb is designed for low beam and fog light functions, featuring less power output.

For more information on the differences between the 9005, 9006, and H11 bulbs, be sure to check out our comprehensive guide.

As a high-beam light bulb that emit a long and bright light, 9005 bulb draw a power of 65 watts.

You may find some brands make 9005 LED bulbs that have a higher power rating, but it is important to consider the vehicle’s requirements. If your car’s user manual states 65W as the maximum power, then that is what you should get.

Typically electronic components in a most vehicle are designed to operate within the 12V electric current provided by the car batteries, and the 9005 bulb is no exception. However, vehicles with a 24V system can also accommodate the 9005 bulb in most cases.

The headlight system of vehicles typically comprises two types of beams: the low beam and the high beam, with the 9005 bulb commonly used for the high beam. Nonetheless, some vehicles also use the 9005 bulb for the low beam.

Halogen 9005 bulbs' average Lumen output is about 1700 lumens. On the other hand, LED 9005 bulbs can have a much higher Lumen output and may reach up to 5000 lumens, depending on the manufacturer. Additionally, LED bulbs have a better beam focus and a longer lifespan than halogen bulbs, making them an excellent choice for drivers who prioritize safety and convenience.

The lifespan of a 9005 halogen bulb typically ranges from 500 to 1000 hours, while the lifespan of a 9005 LED bulb can vary widely. A 9005 LED headlight bulb last as long as 30,000 hours. It ultimately depends on the brand and quality of the LED bulb you purchase.

The price of the 9005 bulb varies depending on the brand, type, and where you buy it. On average, you can expect to pay around $20 to $50 for decent quality halogen 9005 bulbs. For a pair of LED 9005 bulbs, you can expect to pay anywhere from $20 to $100.

Yes, 9005 is available as an HID (High-Intensity Discharge) bulb. However, it's important to note that not all vehicles that use 9005 bulbs can be upgraded to HID because the two types of bulbs require different ballasts, and using the wrong ballast can cause electrical problems or damage to your vehicle's electrical system.

Yes, the 9005 bulb is generally brighter than the 9006 bulb. The 9005 bulb has a higher wattage rating than the 9006 bulb, which translates into a brighter light output.

Many car manufacturers use the 9005 bulb as a headlight bulb or a fog light bulb. Some popular car models that use the 9005 bulb include Acura, Honda, Subaru, Toyota, and Volkswagen, among others.

No, the 9005 and H11 headlight bulbs are not compatible. They have different wattage ratings and socket designs, which means they cannot be interchanged.

LED replacement bulbs are becoming increasingly popular due to their brighter output and longer lifespan compared to traditional halogen bulbs. If you are in the market for 9005 LED bulbs for your vehicle, there are several factors that you should take into consideration before making your purchase.

Compatibility is key. The first thing to determine is whether the 9005 bulb is compatible with your vehicle. Make sure to check your car’s user manual that 9005 is the bulb size you need for your vehicle. If the specifications match, you can proceed with confidence.

Another important things to look for when shopping for LED bulbs is the beam pattern. You should opt for 9005 LED bulbs that provide a clear beam pattern without causing glare. Ideally, this means selecting LED chips that closely mimic the incandescent light bulb filament from your original headlight. SEALIGHT S1 Scoparc 9005 bulbs are one good example.

Lumens are highly related to brightness, with the higher lumens ensuring a brighter light. It goes without saying that driving with a bright and clear beam is crucial when it comes to safety while on the road.

Each product has its own operating space and installation methods, and the size of the clasp, plug, heat dissipation system, etc., will determine the final installation performance of the 9005 LED bulb. Therefore, it's best to look for 9005 LED headlight bulbs that are compact and easy to install, without compromising their performance or reliability. Check out this installation guide to see how easily to install 9005 LED headlight bulb that features plug and play design.

Cost can be a concern for some users, as LED bulbs are generally more expensive than halogen bulbs. The price range for a 9005 LED headlight bulb can vary depending on the brand, quality, and features. On average, they may range from $20 to $100 or more, with higher-end options offering better brightness, color temperature, and longevity.

Now if you have decided to upgrading to 9005 LED bulbs to get more brightness. To save your time, we have list some of the best options for you below. If you want to learn more, you can check this guide of revieiwng the best 9005 LED headlight bulbs.

The SEALIGHT® S1 9005/HB3 is a top contender, with a lifespan of over 5000 hours. These bulbs have a combined power rating of 120W, meaning 60W for each component. Each bulb produces an incredible 7000 Lumens of brightness, making them 600% brighter than their halogen counterparts. Installation is a breeze with their plug-and-play functionality, designed to be compatible with your vehicle without the need for modifications.

Torchbeam T2 9005 White LED Headlight Bulbs are another excellent option. With a Lumen rating of 8000, they produce the brightest and whitest light possible, illuminating the entire area in front of your vehicle. Despite their outstanding performance, they only use 60W of energy, making them energy-efficient. These bulbs are also IP67 waterproof and can be installed in just five minutes.

If you prefer a more conservative level of brightness, the Zoncar 9005 HB3 White LED Headlight Bulbs may be the right choice for you. At around 6500 Kelvins, they produce a white light, but with a lower combined power rating of 42W, they produce 5000 Lumens of brightness. However, they are still 400% brighter than halogen bulbs. These bulbs have an IP67 rating, and their cooling is done through the proactive method, with a built-in turbofan to maintain the bulb's temperature and extend its lifespan.
