Is your LBZ Duramax engine suffering from EGR-related problems? You're not alone. For many owners of the legendary 2006–2007.5 Chevrolet Silverado and GMC Sierra 2500/3500 HD, the factory exhaust gas recirculation (EGR) system has become a persistent problem. As a result, many owners research LBZ EGR delete kits . This guide is designed to help you understand how to choose the LBZ Duramax EGR delete kit that best fits your truck, budget, and needs.
Note: For off-road and racing use only. Removing or modifying emissions-control devices, including the EGR system, on vehicles registered for highway use may violate U.S. federal law and many state/local regulations, and may result in failed emissions inspections, voided warranties, and reduced resale value. This article is for informational purposes only and does not constitute legal advice. Please confirm local regulations before purchasing or installing.
Why Do LBZ Duramax Owners Remove the EGR System?
The LBZ Duramax is a 6.6L V8 turbo-diesel engine produced by General Motors from 2006–2007.5 and used in the Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD. It is one of the most highly regarded platforms in the Duramax lineup, but the factory EGR system is widely considered the engine's "Achilles' heel."
The EGR system routes a portion of exhaust gas back into the intake manifold to lower combustion temperatures and reduce NOx emissions. The problem is that the LBZ EGR cooler is a coolant-driven heat exchanger that is highly prone to internal cracking under repeated heat cycles. Once the cooler cracks, coolant can enter the intake manifold, contaminate the engine oil, and, in severe cases, cause hydrolock and engine damage. Repair costs for parts alone typically range from $1,500–$3,000.
Data shows that EGR-related problems on the LBZ typically become concentrated between 100,000 and 150,000 miles, especially on trucks that tow frequently.
What Types of LBZ Duramax EGR Delete Kits Are Available?
LBZ EGR delete kits on the market generally fall into three categories. Which one you choose depends on your modification goals and budget.
| Type | Core Components | Best For | Key Features |
| 1. Standard LBZ EGR Delete Kit | EGR valve block-off plate, EGR cooler delete pipe/block-off plate, high-temperature gaskets, coolant-line block-off components | Owners who only want to address EGR cooler problems while controlling costs | Basic solution without intake-side upgrades |
| 2. EGR Delete Kit + Intake Elbow | Everything in the standard kit + high-flow intake elbow | Removing the EGR while improving intake efficiency | Improves throttle/turbo response and optimizes the intake path |
| 3. EGR Delete Kit + Y-Bridge (Includes Intake Elbow) | Standard kit + high-flow intake elbow + Y-Bridge upgrade | Owners seeking a complete intake-side upgrade | Includes the second setup and eliminates the factory Y-Bridge airflow restriction; usually the most complete option |
How to Choose the Best EGR Delete Kit for an LBZ Duramax
1. Compatibility
The LBZ mounting points and coolant-line layout are completely different from those of the LLY, LMM, and LML. When purchasing, make sure the product is clearly labeled for the 2006–2007.5 LBZ Duramax, and do not confuse it with the LMM (2007.5–2010). Some kits are labeled "Not for Cab & Chassis applications." If your truck is a Cab & Chassis model, compatibility must be confirmed separately.
2. Materials
Intake and flange components: Prioritize 6061 Billet Aluminum, which has high density and tensile strength. CNC machining also helps ensure a flat sealing surface to prevent air leaks.
Fasteners and high-temperature components:Stainless Steel is recommended because it provides excellent heat and corrosion resistance and can maintain structural stability under harsh operating conditions.
Pipes and hoses: Make sure the system uses Reinforced Rubber or high-quality silicone. The hose should include an internal fabric or metal-braided reinforcement layer to withstand high system temperatures and pressure.
3. Kit Completeness
A "complete" kit should include at least:
- EGR valve block-off plate + gasket
- EGR cooler delete pipe/block-off plate
- Coolant-line block-off components
- All mounting bolts and hardware
4. Installation Difficulty and Technical Support
An LBZ EGR delete is relatively simple compared with other Duramax generations because the LBZ does not have an SCR/DEF system, but you still need a basic socket set, wrenches, a torque wrench, and the ability to drain coolant. When shopping, prioritize brands that provide detailed installation instructions and technical support.
5. Returns and Warranty
Confirm the return policy, such as a 45-day no-questions-asked return period, and the warranty period, which is typically one year. Because tuning is involved after installation, you should also understand in advance whether the return window covers incompatibility discovered after tuning.
Recommended LBZ Duramax EGR Delete Kits

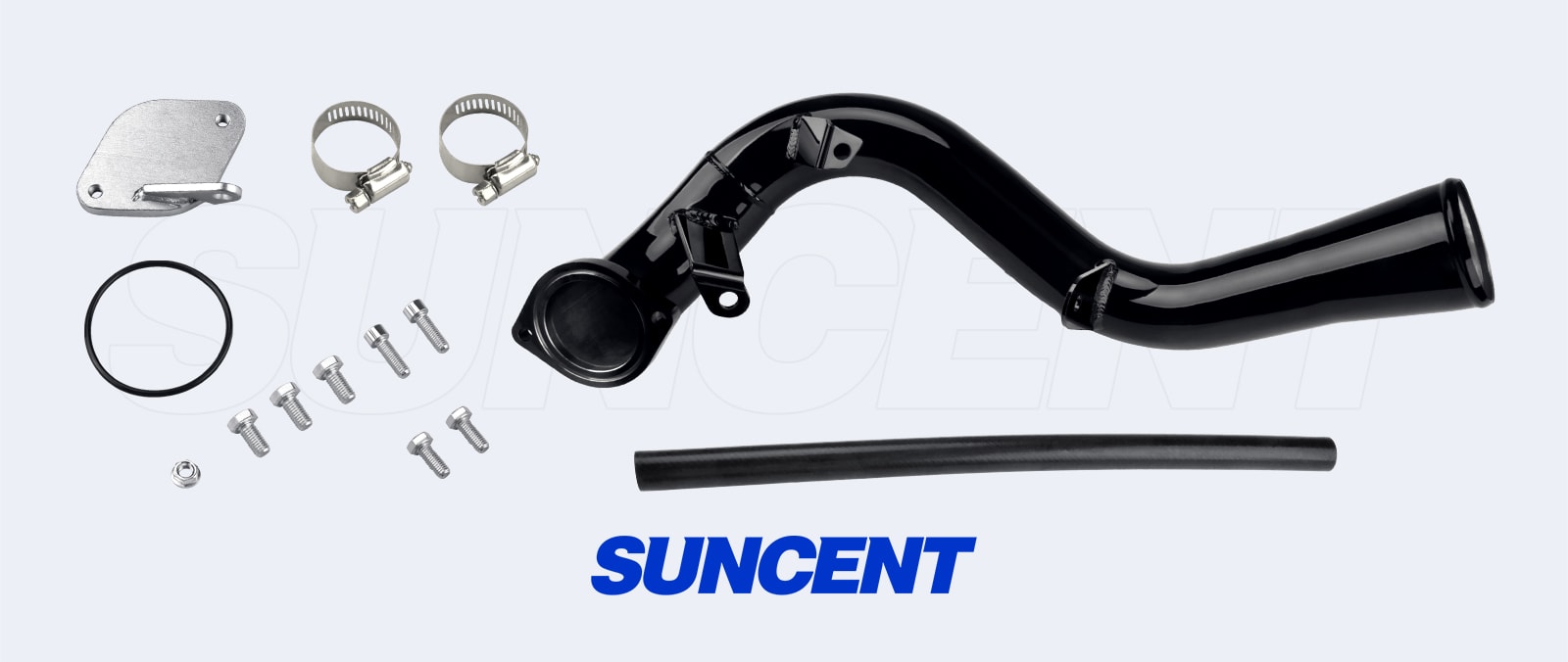

1. 2006–2007.5 LBZ Duramax EGR Valve and Cooler Delete Kit
Core Specifications:
- Stainless steel construction
- CNC precision-machined block-off plate
- Complete removal of the EGR valve and EGR cooler
- Designed to factory specifications to ensure precise mounting-point fitment
The advantage is straightforward installation and complete core hardware; the disadvantage is that it does not include an intake elbow upgrade, so the intake path remains restricted.
2. 2006–2007.5 LBZ Duramax EGR Delete Kit with Intake Elbow
Core Specifications:
- Includes complete EGR valve and cooler delete components
- Includes an upgraded high-flow intake elbow
- The high-flow elbow improves throttle response and intake efficiency
- Block-off components are made from stainless steel/CNC-machined aluminum
Best for: Users who want to improve intake-side hardware while deleting the EGR and who are looking for a more complete modification solution.
Pros and Cons: The advantage is an "all-in-one" solution that addresses the intake path and EGR system at the same time; the disadvantage is a higher budget and slightly greater installation complexity.
How to Choose?
- Only want to address EGR problems and control the budget → Recommendation 1
- Want to improve the intake system at the same time and pursue overall performance → Recommendation 2
SuncentAuto Advantages:
- Ships from US warehouse, free shipping on orders.
- 45-day return guarantee.
- Vehicle compatibility confirmation provided; verify vehicle information before purchase.
- Online technical support available for easy handling of installation and compatibility issues.
- Use discount code [BLOG12] for exclusive discounts.
Does an LBZ Duramax EGR Delete Require Tuning?
Yes, and it must be completed before driving.
The LBZ ECU continuously monitors EGR valve position and EGR flow. Once the EGR valve and cooler are physically removed, the ECU cannot detect the expected EGR flow and will immediately trigger fault codes such as P0401 (Insufficient EGR Flow) and P0404. The consequences include:
- CEL (Check Engine Light) staying on
- Possible limp mode (reduced-power mode), limiting engine output
- Reduced fuel economy and drivability
The core purpose of tuning is to disable EGR-related monitoring and fault-code triggers at the ECU software level.
The installation sequence cannot be reversed: flash the tune first, then install the EGR delete hardware. If the hardware is removed before tuning is installed, the vehicle will not operate normally in the intermediate state.
Tuner Recommendation: Mini Maxx V1 vs. V2
For LBZ Duramax applications that have been confirmed compatible, both the Mini Maxx V1 and V2 can be used as all-in-one tuning solutions. Both come with preloaded tunes and support reading/clearing trouble codes and monitoring engine parameters.
Mini Maxx V1 is better suited for users focused on value. It mainly covers earlier Duramax models. If you only have one compatible 2007 LBZ and do not need support for additional later-model trucks, the V1 is generally sufficient.
Mini Maxx V2 is better suited for users who want newer hardware and broader vehicle coverage. It supports more later-model Duramax years, so if you may use it with other compatible vehicles in the future, or if you prefer a newer interface and hardware platform, the V2 may be the better choice.
Simply put, if you only need it for a compatible 2007 LBZ and are budget-conscious, consider the V1 first; if you want broader vehicle coverage and newer hardware, choose the V2.
What Changes Can You Realistically Expect After an LBZ EGR Delete?
Reliability and Maintenance
This is the most certain and measurable benefit of an EGR delete. When the LBZ EGR cooler cracks internally, coolant can enter the intake manifold, contaminate the engine oil, and in severe cases cause hydrolock. Parts alone can cost $1,500–$3,000 to repair, excluding labor. Once the cooler is removed, this failure point is permanently eliminated. The intake system is no longer contaminated by carbon particles in the exhaust gas, engine oil life is extended, and the need for intake cleaning and EGR valve replacement is eliminated.
Fuel Economy
With a complete EGR delete and tuning, highway fuel economy can typically improve by 2–4 MPG. The improvement mainly comes from a cleaner intake, lower pumping losses, and more complete combustion.
Exhaust Gas Temperature (EGT)
Under heavy towing, EGT can drop by 150–200°F. This has practical value for engine durability during towing and extended high-load operation.
Power Output
The kit itself does not add any horsepower. The stock LBZ is rated at 360 hp / 650 lb-ft, with rear-wheel dyno figures of approximately 315–325 whp. With only an EGR delete and tuning, actual rear-wheel gains are typically in the 20–40 hp range, with noticeably improved throttle response under towing conditions.
Is an LBZ EGR Delete Legal?
In most areas, performing an EGR delete on a vehicle driven on public roads is illegal.
Legal and Compliance Information:
- Federal and local environmental regulations: According to the U.S. EPA (Environmental Protection Agency) and the laws and regulations of many countries and regions, physically removing, modifying, or disabling factory-installed motor-vehicle emissions-control equipment through software, including EGR, DPF, and SCR systems, is illegal.
- Roadside inspections and emissions testing: Modified vehicles generally cannot pass official OBD-II scans or tailpipe emissions testing. In areas with strict emissions enforcement, driving a non-compliant vehicle on public roads may result in significant fines or being prohibited from road use.
The only legal use case:
- Off-Road / Competition Use Only: These emissions-delete kits are generally permitted only for dedicated competition vehicles and work vehicles operated exclusively on closed tracks, private farm property, or non-public roads.
How to Install an LBZ EGR Delete Kit
Always follow the official SuncentAuto installation manual:
👉 Download the 2006–2007.5 LBZ Duramax EGR Delete Kit with Intake Elbow Installation Manual PDF
Before installation:
- Read the entire manual first and check the parts list, torque specifications, and safety precautions.
- Flash the tune first, then install the hardware.
- If you are not familiar with draining coolant or disassembling diesel intake components, have the kit installed by a qualified technician.
- For off-road/racing use only. Removing the EGR system on a highway-registered vehicle may violate federal and state laws.
- After installation, check coolant level, all connections for leaks, CEL status, and OBD trouble codes.
Conclusion
The 2006–2007.5 LBZ Duramax engine delivers excellent performance, but the factory EGR system limits its performance potential. Properly installing the best EGR delete kit for the LBZ Duramax engine can eliminate cooler failures, carbon buildup, and overheating problems while improving fuel economy and power performance.
When choosing a modification kit, consider compatibility, materials, tuning, and installation method. However, keep in mind that the kit is intended only for off-road driving; driving a vehicle with the EGR valve removed on public roads is illegal.
Ready to upgrade? Use the "Vehicle Compatibility" tool on the SuncentAuto website to determine which kit is suitable for your LBZ model.
