If you own a diesel pickup—whether it's a Ford Powerstroke, Dodge Ram Cummins, or Chevrolet Duramax—then you must have heard of the H&S Mini Maxx Tuner. This diesel tuning device launched by H&S Performance has long been a well-known name in the North American diesel pickup community. It is commonly used for engine performance tuning, real-time parameter monitoring, diagnostic trouble code reading, and, in some versions/packages, emissions-system-related tuning intended for off-road or race use.
What Is the Mini Maxx Tuner?
The Mini Maxx Tuner is a type of handheld/in-vehicle tuning device designed for diesel trucks. It typically communicates with the vehicle’s ECU/ECM through the OBD-II port. It features a high-resolution display, supports Shift-on-the-Fly, comes preloaded with tuning files for mainstream diesel pickups, can monitor more than 20 engine parameters in real time—such as EGT, boost pressure, and oil pressure—and can directly read and clear diagnostic trouble codes (DTCs).
Mini Maxx supports the three major mainstream diesel engine camps: Ford Powerstroke, Dodge/Ram Cummins, and Chevrolet/GMC Duramax, covering most diesel pickup models from the mid-2000s to the early 2020s.
Core Functions of the Mini Maxx Tuner
Whether V1 or V2, the Mini Maxx series offers the following core functions:
Shift-on-the-Fly: No need to stop or reflash. You can quickly switch between different power levels while driving.
Pre-loaded Tunes: Ready to use out of the box, with no need to connect to a computer or download custom files. The device comes with multiple tuning options at different power levels.
Emissions Delete (DPF/EGR/DEF Delete): This is the most talked-about selling point of Mini Maxx—removing emissions components that limit performance, intended for off-road use.
High-resolution Display: The screen is clear and easy to read, used for menu navigation and real-time engine parameter monitoring.
Real-time Engine Parameter Monitoring: Displays key data in real time, including EGT, boost pressure, fuel pressure, transmission fluid temperature, coolant temperature, and more.
DTC Read & Clear: Directly reads and clears trouble codes through the device, helping prevent the vehicle from entering limp mode due to emissions-related faults.
Together, these functions allow the Mini Maxx series to maintain a strong position among diesel tuning devices—benefiting both performance enthusiasts and heavy-duty truck owners who drive daily.
Vehicle Compatibility of the H&S Mini Maxx
When it comes to Mini Maxx vehicle coverage, one of the most common misconceptions is that “V2 works with everything.” In reality, that is not the case.
The table below lists the vehicle ranges supported by V1 and V2 based on engine model and year:
| Version | Compatible Engines and Year Ranges |
| Mini Maxx V1 | Ford 6.0L (2003–2007), 6.4L (2008–2010), 6.7L (2011–2014) Ram 5.9L (2006–2007), 6.7L (2007.5–2012) GM 6.6L Duramax (2006–2014) |
| Mini Maxx V2 | Ford 6.4L (2008–2010), 6.7L (2011–2019) Ram 6.7L (2007.5–2021) GM 6.6L Duramax (2007.5–2016) |
* Although V2 is listed as supporting 2007.5–2012 Ram 6.7L models, V1 is more recommended for this year range because of better stability. If you do need to use V2 on an early Ram, verify firmware compatibility in advance.
Before purchasing, be sure to make final confirmation with the seller using your vehicle VIN or specific year + engine model—this is the safest way to avoid buying the wrong device.

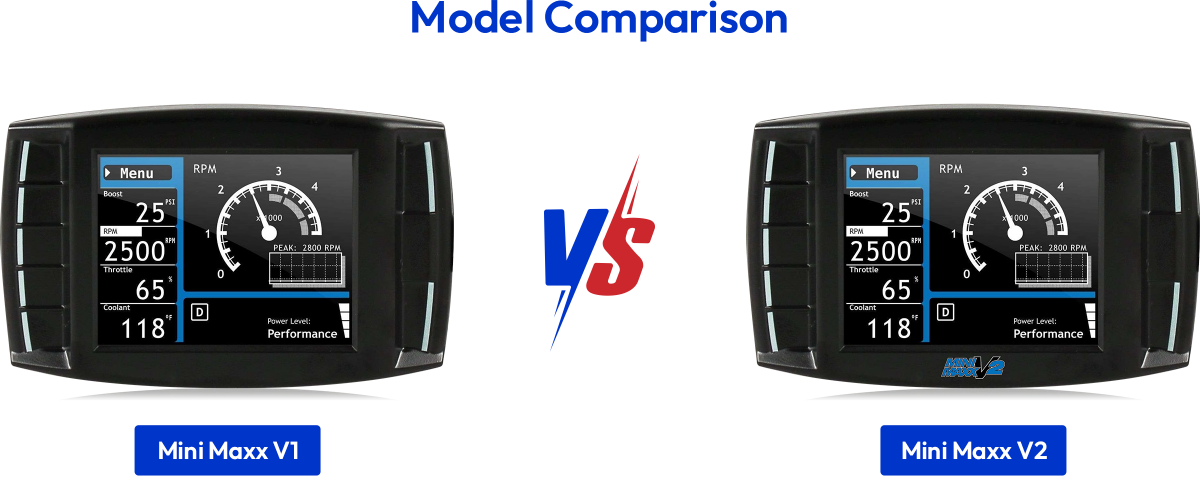

Mini Maxx V1 vs V2: Key Differences
Quick Comparison
| Comparison Dimension | Mini Maxx V1 (Classic Version) | Mini Maxx V2 (Modern Version) |
| Core Positioning | Stable and mature, suitable for older diesel pickups | Advanced and highly expandable, suitable for newer models |
| Vehicle Year Coverage | Mainly covers 2003–2014 models | Mainly covers 2008–2021 models |
| Factory EGT Sensor Support | Supports use of the factory EGT sensor | Not supported; requires purchasing an independent EGT sensor separately |
| Interface and Functions | Classic and stable, manually updated through a computer data cable | Modern interface, supports wireless OTA firmware updates |
| Delete Functions | DPF, EGR, DEF | DPF, EGR, DEF, SCR |
| Price Range | About $700 USD | About $1,100 USD |
Which Should You Choose: V1 or V2?
Decide based on vehicle year, not feature requirements:
Choose V1: Ford 6.0L/6.4L (2003–2010), Ram 5.9L/early 6.7L (2006–2012), Duramax (2006–2014).
Choose V2: Ford 6.7L (2011–2019), Ram 6.7L (2013–2021), Duramax (2015–2016). If your truck is a newer model from 2013 or later, V2 is the only choice.
Mini Maxx V1 (Classic Version)
H&S Mini Maxx V1 is the foundation of the entire series and is known in the diesel pickup community as the "classic model." Its core advantages are stability and reliability.
✅ Core Advantages
Extremely High Stability — V1 has undergone years of market validation on older platforms such as the 6.0L / 6.4L Powerstroke, 5.9L / early 6.7L Cummins, and 2006–2014 Duramax. Software bugs are rare, tuning files are mature and reliable, and compatibility issues are uncommon.
Perfect Support for Older Communication Protocols — Many older diesel pickups, such as the 2003–2007 Ford 6.0L, use earlier ECU communication protocols. V1 was built specifically for these platforms and can flash directly without any adapters or cracking.
Supports the Factory EGT Sensor — This is a very practical detail. V1 can directly read data from the vehicle's factory exhaust gas temperature sensor, allowing users to monitor EGT in real time on the screen without purchasing and installing a separate EGT sensor.
Simple Operation, No Learning Curve — The preloaded power levels, such as daily, tow, and performance modes, already cover most usage scenarios. Users do not need professional tuning knowledge. Plug in the device, select the power level, and click to flash—three steps are enough.
Value Choice — V1 offers a better price advantage while providing complete delete tuning functions, making it a cost-effective option for older-platform users.
⚠️ Things to Note
It does not support newer models after 2014, such as Ford 6.7L 2015+ and some later Ram 6.7L 2013+ models.
Firmware updates require a computer and data cable, making them less convenient than V2's OTA updates.
Mini Maxx V2 (Modern Version)
Mini Maxx V2 is a completely new-generation product launched by H&S Performance in 2022, marking a shift from traditional hardware-driven logic to more complex software integration logic. Built on the success of V1, it has been comprehensively upgraded to cover newer models that V1 cannot support and to provide a modern user experience.
✅ Core Advantages
Wider Vehicle Coverage — This is the core selling point of V2. It supports 2013–2021 Ram 6.7L Cummins, 2011–2019 Ford 6.7L Powerstroke, and 2015–2016 Duramax 6.6L. Simply put: if your truck is from after 2013, V2 is almost the only choice.
Wireless OTA Firmware Updates — V2 supports wireless firmware updates through an SD card, ensuring that the device always stays on the latest version and delivers optimal performance. No computer or data cable is required. By regularly checking firmware updates, you can receive the latest bug fixes and vehicle compatibility support.
More Modern User Experience — V2 features a completely updated user interface, with menu logic that better matches modern usage habits and makes operation more intuitive and smooth.
Deeper ECU Interaction Capability — V2 introduces deeper ECU interaction capabilities, offering finer tuning granularity and more customization options compared with V1.
Supports SCR Delete — V2 additionally supports SCR delete, which is especially important for complete emissions delete requirements on newer models.
Faster Shift-on-the-Fly Response — Thanks to its updated hardware platform, V2 delivers faster ECU response when switching power levels while driving compared with V1.
⚠️ Things to Note
It does not support the factory EGT sensor. If you need to monitor exhaust gas temperature, you must purchase an independent EGT sensor and pyrometer cable separately and install it in the pre-turbo location.
Some configurations have known software compatibility issues. For example, on certain Ram model years, V2 may require a specific firmware version to run stably. It is recommended to check the official known-issues list before purchasing.
Is It Legal for Road Use?
Using Mini Maxx delete tuning on public roads is illegal. This function is for off-road, trail, or race use only. In the United States, tuning that involves DPF, EGR, DEF delete or disabling emissions monitoring should not be used on vehicles driven on public roads.
2026 Enforcement Trend Changes
In early 2026, the EPA and DOJ announced that they would no longer pursue criminal charges in OBD tuning-related cases, instead focusing on large-scale and malicious emissions-system tampering. Meanwhile, a Wyoming diesel tuning operator who had previously been imprisoned for hundreds of emissions violations also received a presidential pardon at the end of 2025.
However, this absolutely does not mean a "green light":
- The EPA still retains the authority and ability to investigate and pursue civil penalties.
- Delete tuning for commercial trucks/heavy-duty fleets faces stricter scrutiny.
How to Install the Mini Maxx Tuner
Installation of the Mini Maxx series is very simple and does not require connecting to a computer or using custom tuning files. See our detailed instruction manual document:
Mini Maxx V1 Installation Instructions
Mini Maxx V2 Installation Instructions
Conclusion
The Mini Maxx Tuner is a powerful diesel tuning device, but the key is choosing the right version and using it in the right scenario—select the correct version to ensure compatibility with your vehicle, and use it only in fully legal off-road-use scenarios. Before spending money, be sure to make final confirmation with the seller using your vehicle VIN or specific year + engine model, and repeatedly verify the emissions regulations in your area.
