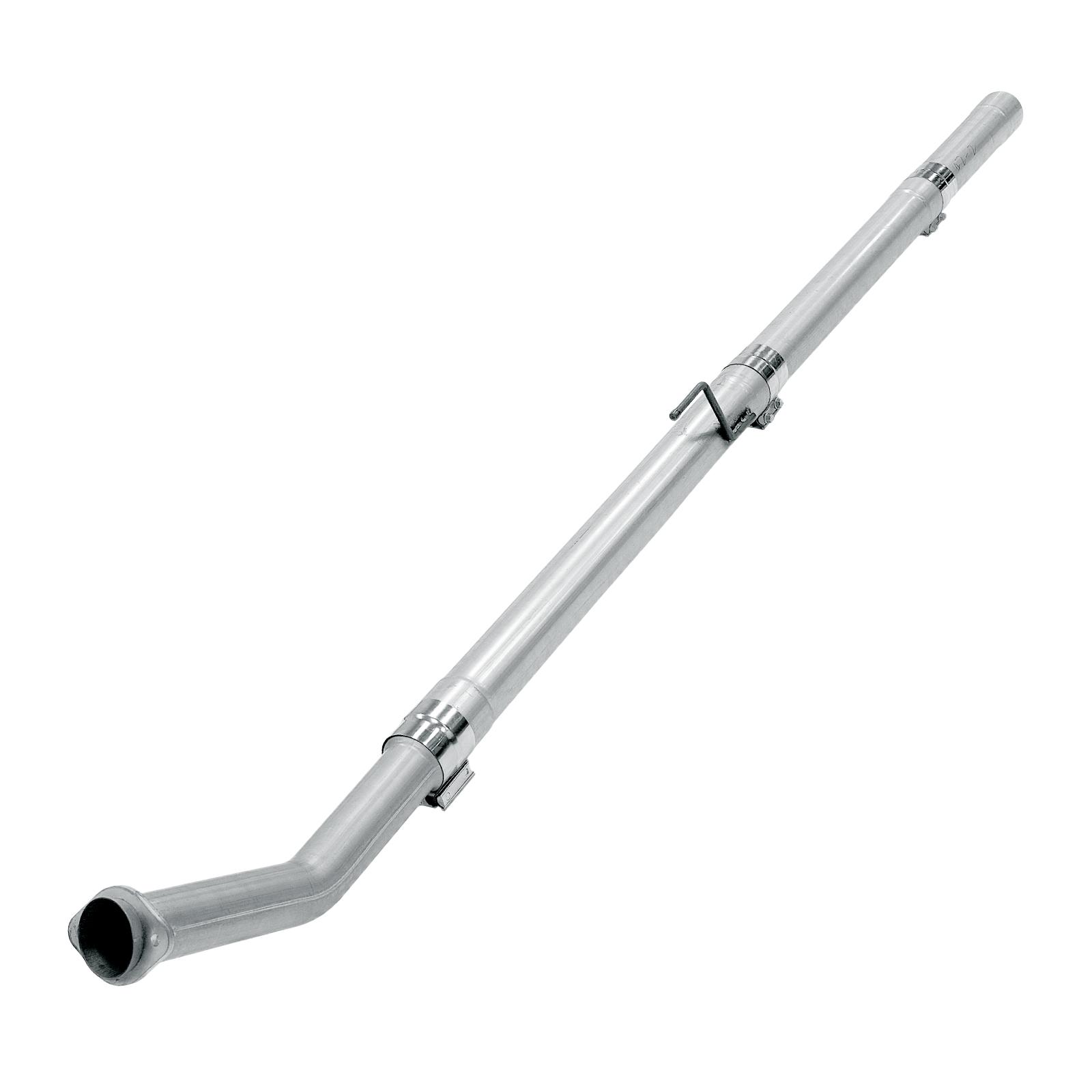

2018-2020 3.0L Powerstroke 3.5" DPF Delete Racepipe for Ford F150

Tackle the 3.0L Powerstroke’s Achilles' Heel: Backpressure & Oil Dilution

The 3.0L Powerstroke V6 (Lion Diesel) is a smooth, efficient engine, but its tight engine bay and restrictive factory DPF system create two major mechanical bottlenecks: excessive heat backpressure at the turbo turbine and frequent DPF regenerations.

During active regeneration, extra diesel is sprayed to heat up the DPF, which inevitably leaks past the piston rings into your crankcase. Replacing the choked stock assembly with this high-flow 3.0 powerstroke delete pipe eliminates active regen cycles at the root, preserving your oil integrity and engine longevity.

Optimized Application: Heavy Towing & Off-Road Endurance

While factory diesel emissions systems choke down under continuous heavy work, this premium 3.0 powerstroke straight pipe design thrives under load. By removing the thermal barrier of the OEM DPF, exhaust gases evacuate rapidly, lowering Exhaust Gas Temperatures (EGTs) significantly during long downhill heavy-hauling or high-stress off-road trail driving. The single Variable-Geometry Turbocharger (VGT) spools markedly faster, providing crisp, immediate throttle response right from 1,500 RPM.

Kit Contents (Package Includes)

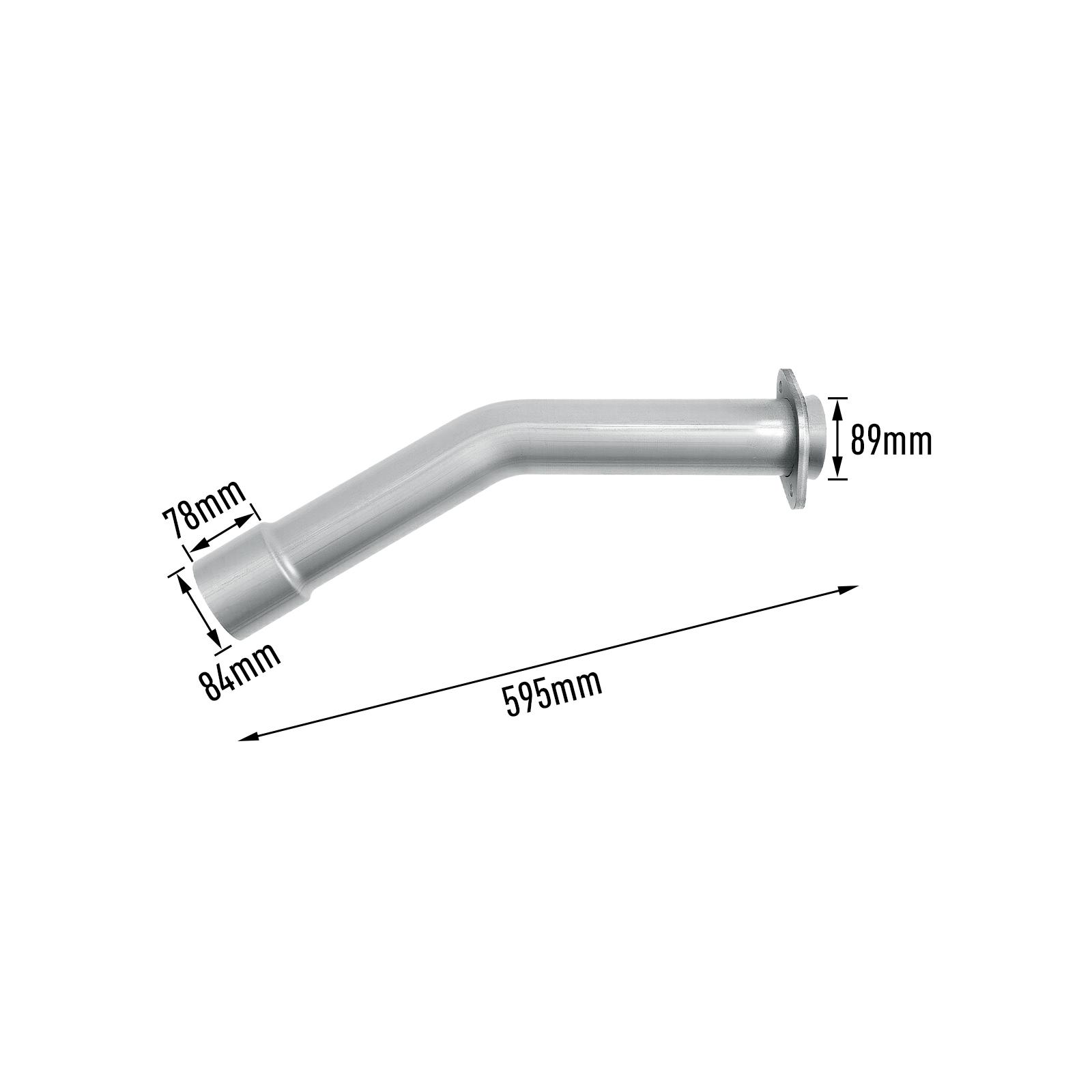

• 1x Front Flanged Race Pipe Section (3.5" Mandrel-Bent)

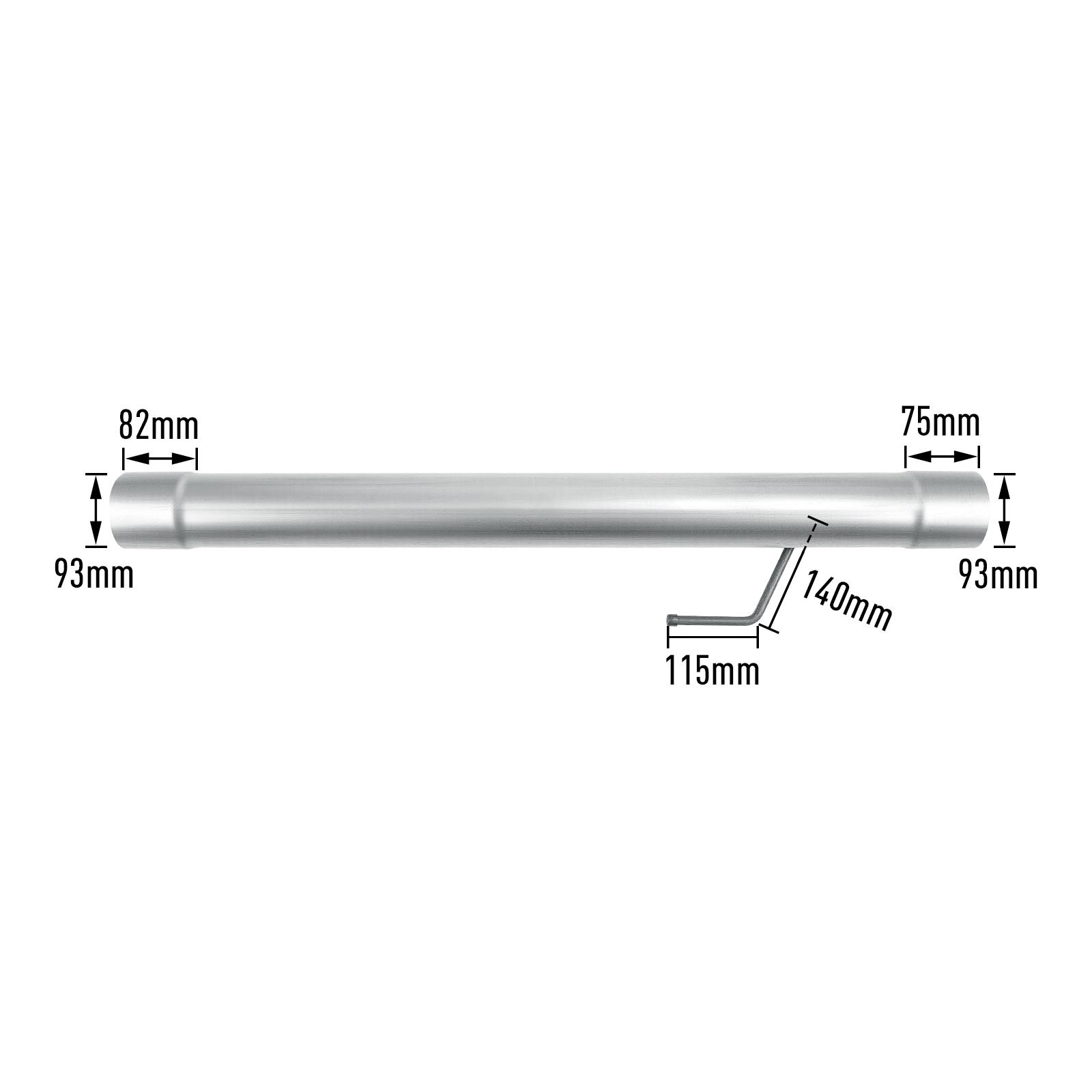

• 1x Main Extension Pipe with Pre-Welded OEM-Style Hanger Rod

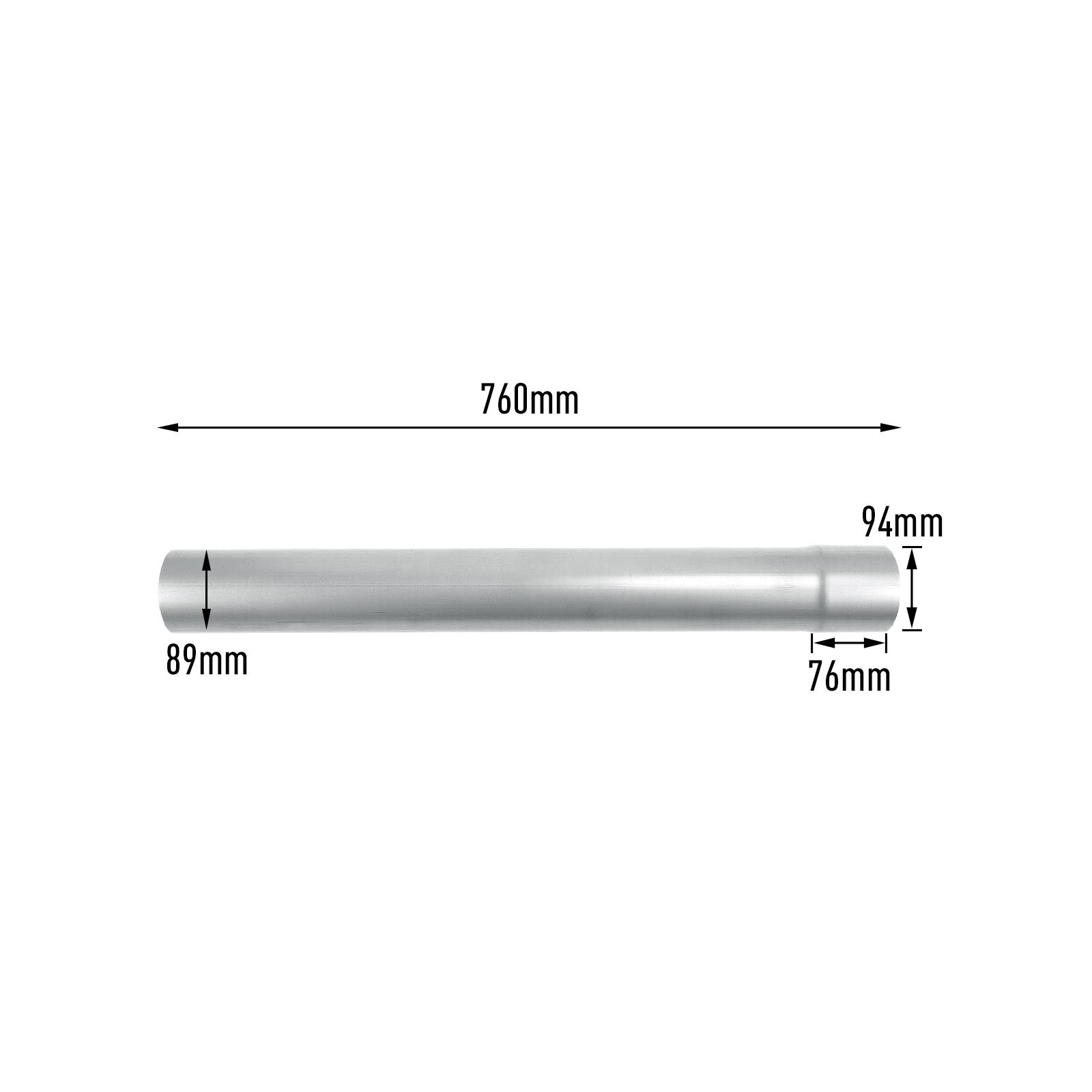

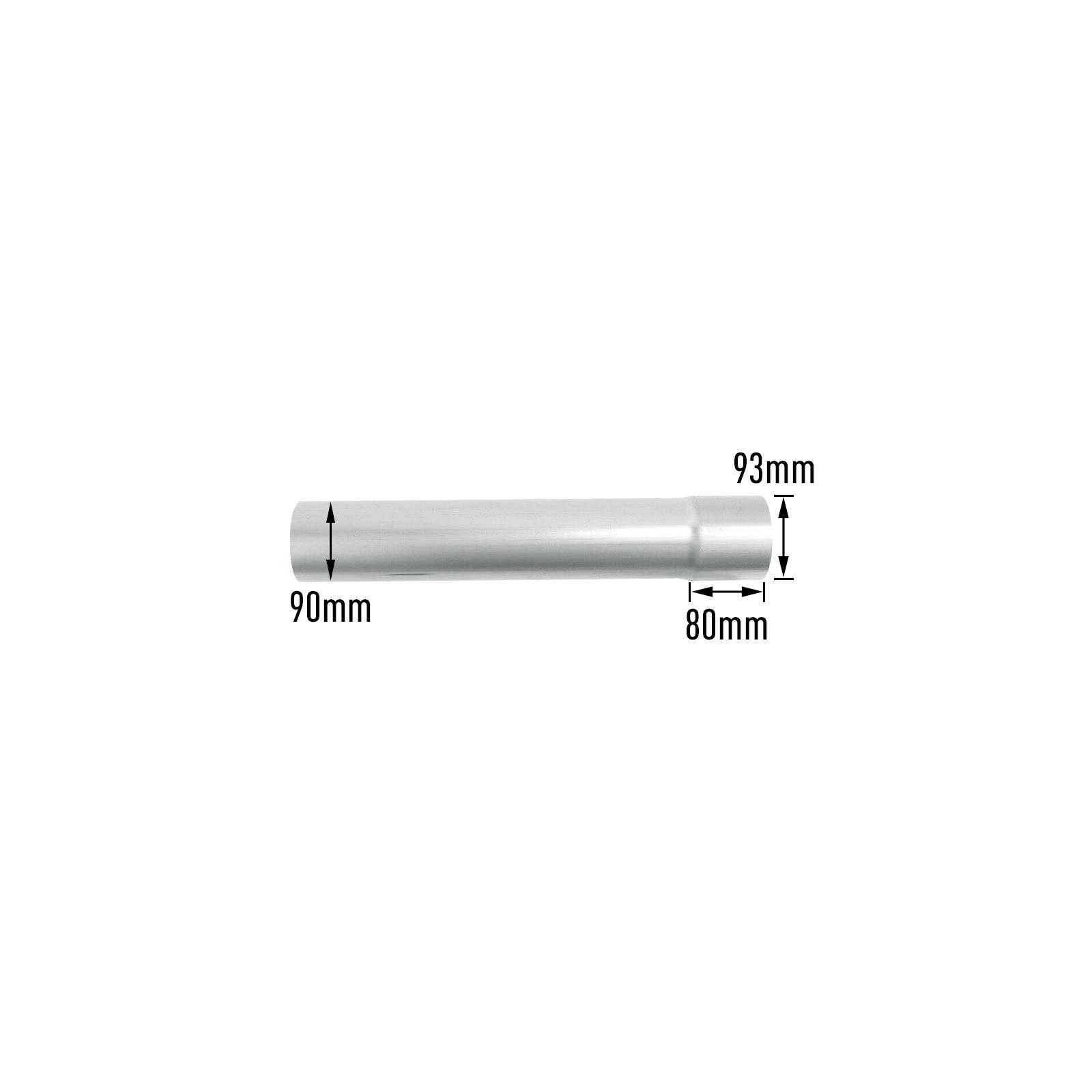

• 2x Intermediate Straight Extension Pipes
• 4x Heavy-Duty Saddle-Style Exhaust Clamps

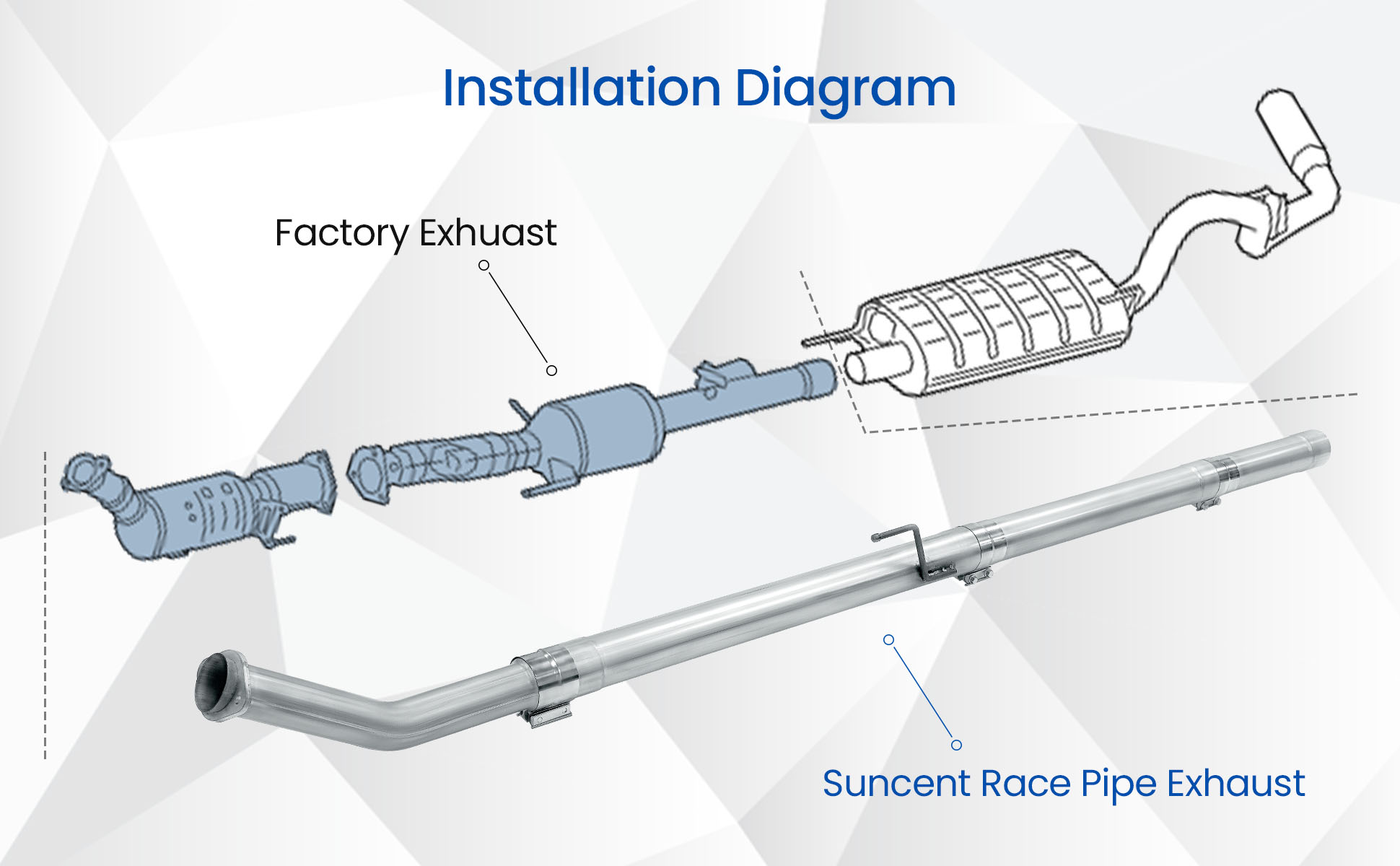

Estimated Installation Time & Step-by-Step Overview

Estimated Install Time: 1.5 – 2.5 Hours (Basic hand tools required; vehicle lift or tall jack stands recommended).

1. Disconnect OEM exhaust temperature and pressure sensors from the factory DPF assembly.
2. Unbolt the factory exhaust flanges and drop the stock DPF/CAT pipe from under the truck.
3. Bolt the new flanged front section of your 3.0 powerstroke straight pipe to the OEM mounting position.
4. Slide the main extension pipe into the factory rubber isolator hanger and join the intermediate pipes using the provided saddle clamps.
5. Align the entire assembly for frame and driveshaft clearance, torque all clamps down, and flash your off-road tune via the OBD2 port before starting the engine.

Tuning & Compatibility Reminders

• No Unlock Cable Required: Tuning the 2018–2020 F-150 3.0L Powerstroke ECU does not require physical bench unlocking or external bypass cables.
• Required Software: Installing this 3.0 powerstroke delete pipe removes factory sensors; custom off-road tuning software is strictly required to re-map fueling logic and prevent Check Engine Lights (CEL).
• Fitment Note: Engineered exclusively for 2018–2020 Ford F-150 3.0L V6 Powerstroke trucks. Does not fit F-250 / F-350 6.7L Super Duty models.
