6.0L Powerstroke 3.5" Cat & Muffler Delete Race Pipe With Clamps for 2003-2007 Ford F250/F350

2003–2007 Ford 6.0L Powerstroke 3.5" Cat & Muffler Delete Pipes with Clamps

The 6.0L Powerstroke 3.5-inch cat and muffler delete pipe kit is designed for 2003–2007 Ford F-250 and F-350 Super Duty trucks equipped with the 6.0L Powerstroke diesel engine.

This kit uses two high-flow straight pipes to replace the two most restrictive sections of the factory exhaust system: the catalytic converter and muffler. It retains the factory downpipe and tailpipe, making it a cost-effective entry-level exhaust upgrade with a simpler installation than a complete downpipe-back or turbo-back system.

What Is Included in the Kit?

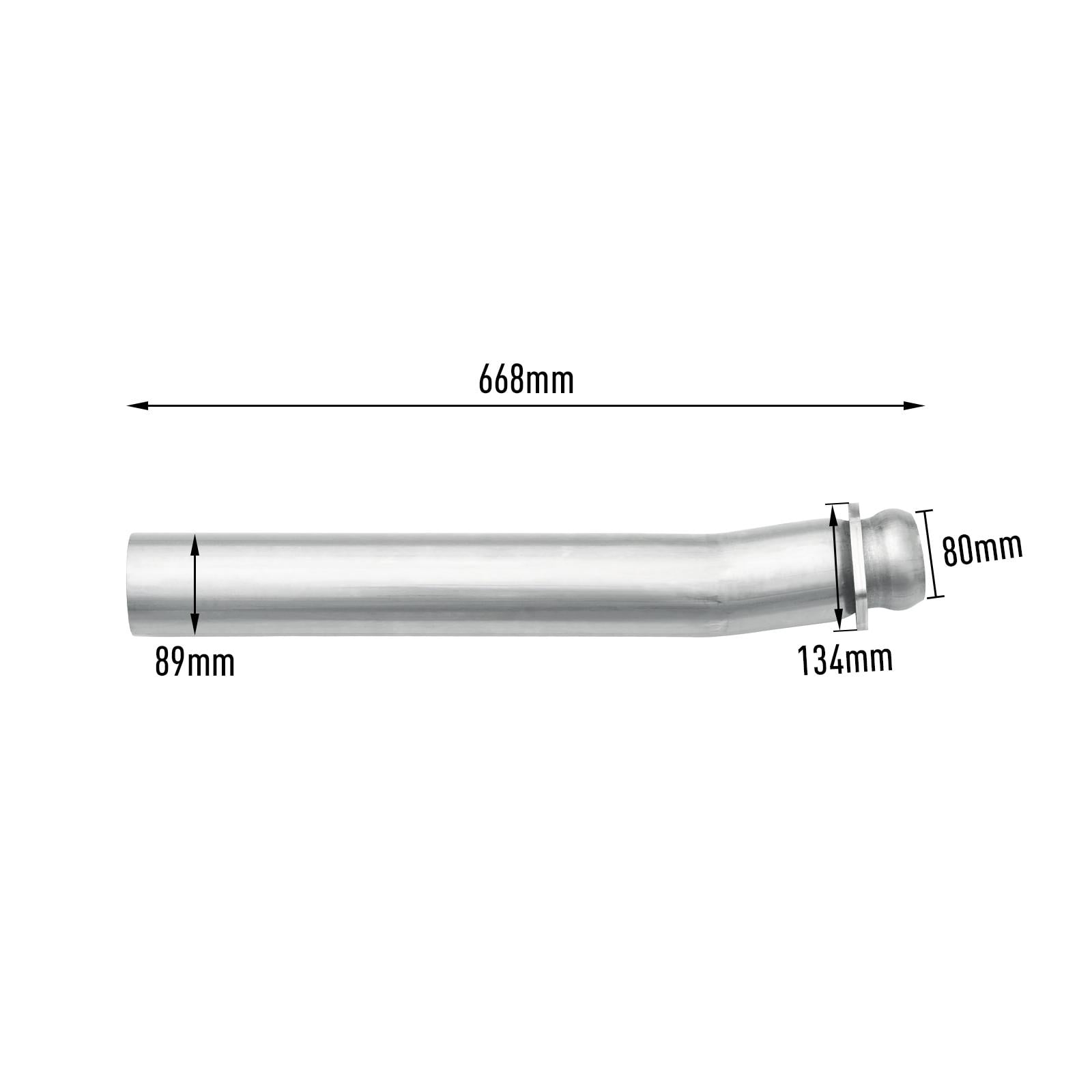

• 1 × Cat Delete Pipe: Replaces the factory catalytic converter section.

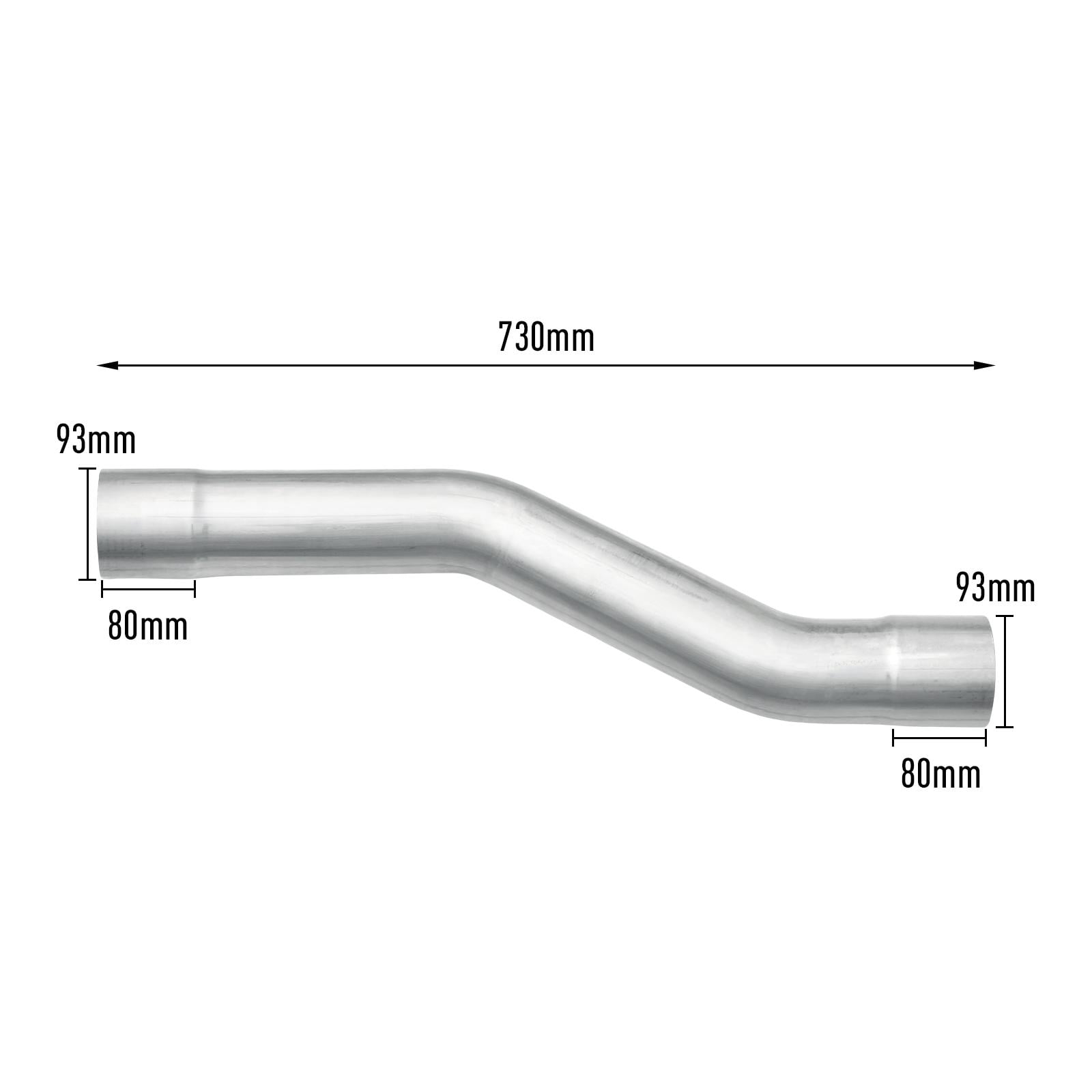

• 1 × Muffler Delete Pipe: Replaces the factory muffler section.
• 3 × Installation Clamps: Allow clamp-on installation without permanent welding.
• Mounting Bolts and Nuts: Includes the fastening hardware required for installation.

6.0L Powerstroke Factory Exhaust Layout

The factory exhaust system used on the 2003–2007 Ford 6.0L Powerstroke follows this layout:

The catalytic converter and muffler are the two largest airflow restrictions in the factory system. The converter uses a dense internal honeycomb structure, while the muffler uses chambers and perforated tubing to reduce sound. These components control emissions and noise, but they also restrict exhaust flow. This kit replaces both components with straight-through 3.5-inch pipes while retaining the factory downpipe and tailpipe.

Common 6.0L Powerstroke Exhaust Upgrade Paths

Included Clamps for Easier Installation

Unlike versions that require welding or separately purchased hardware, this kit includes three clamps for a more convenient installation. The clamp-on design also makes future maintenance, alignment adjustments, and disassembly easier than a permanent welded setup.

This product is the with-clamps version, making it a better choice for buyers who want easier installation and simpler future service. It is especially useful for DIY installations, alignment adjustments, and exhaust setups that may be changed later.

The 6.0L Powerstroke muffler and cat delete pipe without clamps is better suited to owners planning a welded installation or a more permanent custom exhaust setup.

T-409 Stainless Steel vs. Factory Aluminized Steel

The 6.0L Powerstroke produces high exhaust temperatures and strong vibration, while the exhaust system is frequently exposed to rain, road salt, moisture, and changing weather. T-409 stainless steel provides better heat and corrosion resistance than standard aluminized steel, helping the pipes maintain their structural integrity during long-term use.

Recommended Upgrade: EGR Delete Kit + ECU Tuning

Replacing the catalytic converter and muffler improves the downstream exhaust path, but the factory EGR system remains one of the most failure-prone areas of the 6.0L Powerstroke engine.

The original EGR cooler routes exhaust gas exceeding 600°C back toward the intake system. Over time, internal brazed joints may crack, potentially causing coolant leaks, sludge buildup, restricted airflow, and reduced engine performance. Combining this exhaust upgrade with an EGR delete kit can address the problem at its source.

How to Install This 6.0 Powerstroke Muffler & Cat Delete Kit

Installation Steps

1. Park the vehicle on a level surface and allow the exhaust system to cool completely.
2. Raise and securely support the truck.
3. Inspect the factory exhaust layout and confirm fitment before removing any original components.
4. Remove the factory catalytic converter and muffler section.
5. Clean the pipe connections and check clearance around the frame, suspension, and underbody.
6. Test-fit the new cat delete pipe and muffler delete pipe into position.
7. Align the full exhaust path carefully to ensure proper routing and adequate clearance.
8. Install the included clamps and tighten them evenly after final alignment.
9. Start the engine and inspect for exhaust leaks, loose connections, or unwanted contact with nearby components.
10. Recheck clamp tightness after a short heat cycle to ensure a secure fit.

Installation and Tuning Notes

• Professional installation is recommended for the best fit and seal.
• Basic exhaust tools may be required, and rusted factory hardware can increase installation difficulty.
• Penetrating oil may help with the removal of older exhaust components.
• A tuner is not included with this product.
• This product is generally intended for competition or off-road use only where permitted.
• Removing factory exhaust components may affect emissions compliance, inspections, and warranty-related matters.
• Always verify the exact year, model, trim, wheelbase, cab, and bed configuration before installation.
