2022 Ram 2500 & 3500 Delete Kit Guide: Gains, Risks & Best Kit

What Is a 6.7 Cummins 2022 Ram 2500/3500 Delete Kit?

A Delete Kit generally refers to a complete set of hardware and tuning solutions used to remove or bypass the diesel emissions system.

Modern diesel vehicles are equipped with three layers of emissions control systems to meet the EPA's stringent emissions standards - these three are the core targets that a delete kit aims to "delete."

DPF Delete Pipe

The DPF captures and stores soot and particulate matter generated during diesel combustion. When the filter becomes full, the system performs a "regeneration cycle" - burning off the accumulated soot at extremely high temperatures. The problem is that the regeneration cycle itself consumes extra fuel and is difficult to complete under conditions like city short-trip driving, leading to DPF clogging and triggering limp mode. Replacement cost can be as high as $3,000 or more.

The DPF Delete Pipe replaces the factory DPF to reduce exhaust backpressure.

EGR Delete Kit

The EGR introduces a portion of exhaust gas back into the engine cylinders to lower combustion temperatures and reduce NOx emissions. However, this design allows soot from the exhaust to accumulate in the intake system, causing severe intake carbon buildup, long-term impact on engine reliability, and possible cooling system failures.

The EGR Delete Kit removes or disables the EGR system to reduce carbon buildup caused by exhaust gas recirculation.

DEF/SCR System

The SCR system injects DEF to convert NOx into nitrogen and water. This system requires regular DEF refills and is prone to failures in cold temperatures. DEF crystallization, sensor malfunctions, and heater failures are common problems. These issues are even more common in cold regions or high-mileage vehicles.

Delete Tuner

For the 2022 Ram 2500 6.7 Cummins, the Delete Tuner is the most critical part of the entire Delete Kit. It is responsible for modifying ECU logic, disabling related fault codes, and matching the exhaust and hardware after deletion. Without the correct Tuner, the vehicle is likely to show a Check Engine Light, or even enter speed limiting or limp mode.

Why Is Deleting a 2022 Ram 2500/3500 More Complicated?

Compared to older models, deleting a 2022 Ram 2500 and 3500 is significantly more difficult, and the core reason is ECM encryption.

Starting in 2022, the 6.7L Cummins engine in the Ram 2500/3500 uses a next-generation encrypted Engine Control Module (ECM). This means traditional OBD direct flashing cannot write a custom delete tune like on older models, because the encrypted ECM prevents unauthorized software access and program writing.

2025 and later models have adopted even more advanced encryption architectures, making tuning even more difficult - which also means the 2022 model is currently one of the higher-performance-potential "deletable" model years.

📌 Technical Note

Although the hardware replacement step is added, vehicles after an ECM swap can gain Switch-On-The-Fly (SOTF) real-time power switching — allowing you to switch between different power levels using the factory steering wheel buttons, a convenience not available with older delete solutions.

If you want a simpler route without ECM swap, SuncentAuto's DPF+EGR hardware paired with EZ Lynk Auto Agent3 and a 2022-2024 custom tuning file is a practical option. The full detailed recommendation, pricing, and discount code are covered below.

Benefits and Drawbacks of Deleting a 2022 Ram 2500/3500

Potential Benefits: Major Performance and Efficiency Gains

1. Power Increase

After removing the DPF, exhaust backpressure is significantly reduced, turbo response is quicker, and power delivery is more direct. According to real-world test data, the 2022 Ram 2500 6.7L Cummins gains 80–150 HP after deletion. With different tuning levels, power can be further increased — with ECM swap and multi-level tuning, up to +160 HP is achievable.

2. Fuel Economy Improvement

Deleting eliminates the extra fuel consumption from regeneration cycles, and the engine no longer fights against exhaust backpressure. Many users report a 2–5 MPG improvement on the highway. Additionally, you no longer need to purchase DEF, saving approximately $200–$400 per year on DEF refills.

3. Long-Term Reliability and Lower Maintenance Costs

DPF clogging, EGR carbon buildup, DEF pump failures, and NOx sensor fault codes are common pain points for 2022 Ram 2500 diesel owners. Deleting can reduce the repair risks associated with these systems - for example, avoiding DPF replacement costs that can run into the thousands of dollars, and reducing the impact of EGR carbon on the intake system and engine reliability.

Unavoidable Costs: Legal and Financial Risks

1. Clear Legal Red Line

In the United States, removing or disabling factory emissions control equipment generally violates the Clean Air Act. If the vehicle is driven on public roads, deleting the DPF, EGR, or DEF/SCR systems can bring legal risks. Therefore, Delete Kits are typically intended for off-road, race, or competition use only.

Although the DOJ policy change in 2026 means individuals no longer face criminal imprisonment risk, civil penalties, up to $45,268, remain a real threat.

2. Voided Warranty

Once a delete kit is installed, all factory warranty coverage related to the powertrain and emissions systems is voided. Dealers can detect tampering by reading the "critical event counter" in the ECM — even if you revert to factory hardware, these data traces may remain.

3. Resale and Inspection Limitations

A deleted vehicle has a narrower audience in the used market, as some buyers worry about emissions testing, registration, and legal issues. In states with strict emissions testing such as California, New York, New Jersey, Massachusetts, and parts of Colorado, OBD or emissions tests may cause the vehicle to fail annual inspection.

How to Choose a Good 2022 Ram 2500 or 3500 Delete Kit?

When choosing a 2022 Ram 2500 Delete Kit, you cannot just look for "fits 6.7 Cummins." The 2022 model involves ECM encryption, and what truly affects installation success and long-term stability is whether the entire solution matches — including the Tuner, DPF delete pipe, EGR delete kit, tuning file, and after-sales support.

1. Core Component List: None Are Optional

A complete delete solution must include the following four parts; missing any one will prevent the vehicle from running properly:

2. First Decide on Technical Route: ECM Swap vs. No Swap

The biggest hurdle for the 2022 model is the encrypted ECM, so you must decide which path to take before purchasing.

ECM Swap Solution:

Replace the factory ECM with a programmable 2019-2021 ECM, migrate immobilizer data, then flash the tune.

Advantages: mature tuning, supports SOTF real-time power switching.

Disadvantages: higher cost, usually around $2,500–$6,000 for a full set.

No ECM Swap Solution:

Flash the encrypted ECM directly via a specific tuning device, such as EZ Lynk.

Advantages: saves ECM hardware cost.

Disadvantages: fewer tuning file options available.

3. Hardware Quality: DPF Delete Pipe and EGR Kit

For the DPF Delete Pipe, prefer T409/T304 stainless steel for better rust resistance, and choose an OEM-fit design that requires no cutting or welding.

For the EGR Delete Kit, confirm that it includes EGR valve block-off plates, cooler removal parts, and all required gaskets and seals. Aluminum or steel construction is generally more reliable.

For exhaust diameter, 4-inch is easier to install and offers better ground clearance, while 5-inch sounds deeper and has better heat dissipation. However, you need to confirm chassis clearance before choosing a 5-inch setup.

4. Installation Prerequisite: Tuning Must Precede Hardware

Every reputable seller will emphasize this point: before installing any DPF or EGR delete hardware, you must first flash the tuning file into the ECM. Otherwise, the vehicle will immediately throw fault codes, enter limp mode, or fail to start. If a seller does not clearly remind you of this, it actually indicates they are not professional.

5. Seller Support & Service: Avoid Pitfalls

A reliable seller should provide detailed installation instructions or videos, remote technical support, after-sales troubleshooting, clear return policies, and transparent shipping terms. The 2022 model is more complex than older generations. For someone installing a Delete Kit for the first time, after-sales support is often more important than saving a few tens or hundreds of dollars.

Best 2022 Ram 2500/3500 Delete Solution Recommendation: SuncentAuto

For 2022-2024 Ram 2500/3500 6.7L Cummins owners, we recommend the SuncentAuto DPF+EGR delete hardware combined with the EZ Lynk tuning solution. This is not a forced all-in-one kit, but a modular delete solution where the hardware and tuning are sold separately but are perfectly compatible with each other. You can freely choose your combination based on your budget and modification pace.

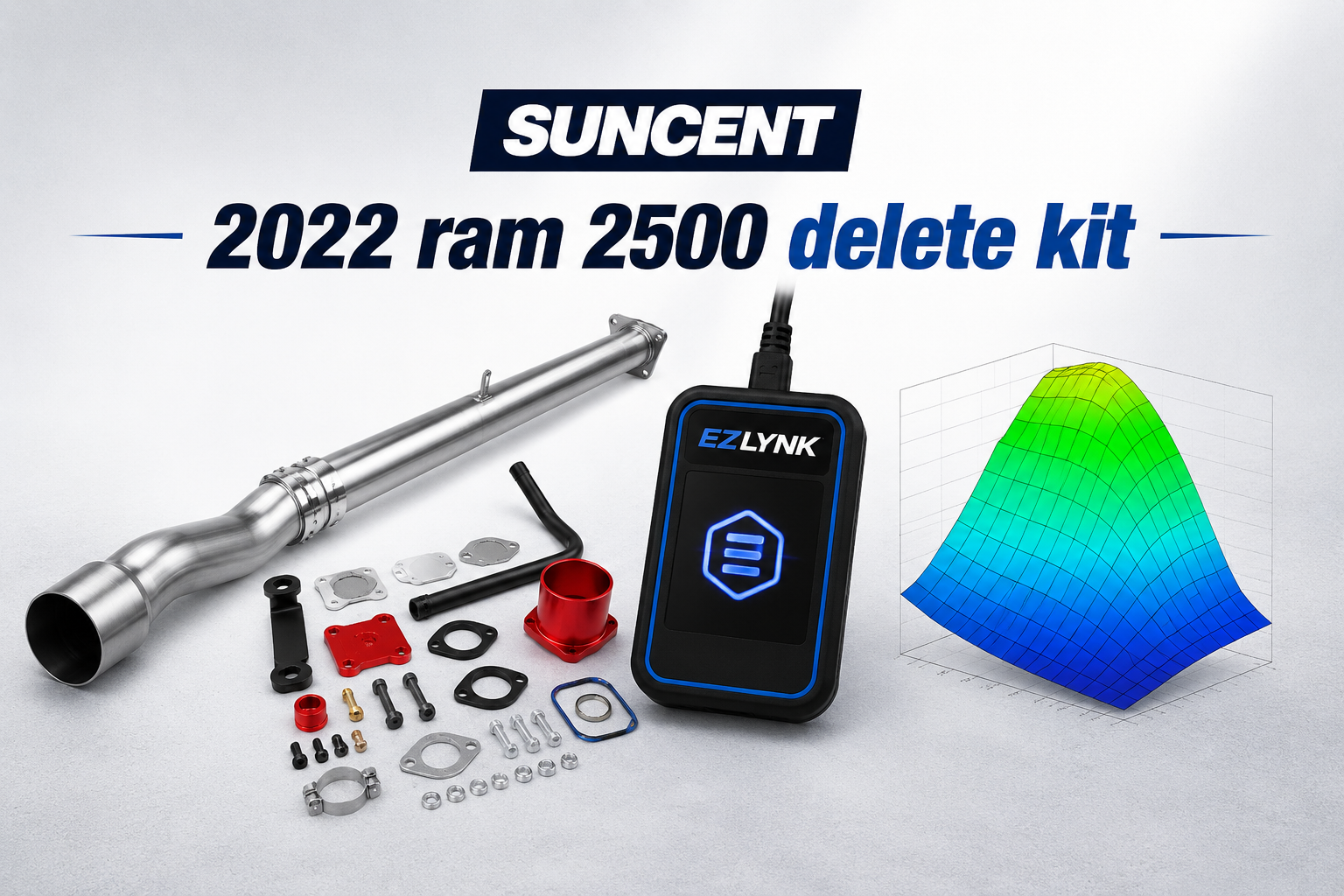

Recommended Combination List

Suncent® 2019-2024 6.7L Cummins 4" Race Pipe DPF Delete and Red EGR Delete Kit for Ram 2500 3500

$395.76

$415.76

Suncent® EZ Lynk Auto Agent3 Device for 2008-2026 Powerstroke / 2011-2026 6.6L Duramax / 2010-2024 6.7L Cummins DPF DEF EGR Delete

$729.99

$794.35

Suncent® 2022-2024 6.7L Cummins EZlynk Custom Tuning File No ECM Swap Tuning 4-Week Support Package for Ram 2500-5500 DPF DEF EGR Delete

$2555.31

🔥 12% Blog Exclusive Discount Code

📌 How to Buy Everything in One Go?

Visit SuncentAuto's official website, go to the DPF+EGR hardware kit product page, and in the "Frequently Bought Together" section, you can one-click add the matching EZ Lynk Auto Agent3 device and custom tuning file. Add all three independent products to your cart, enter discount code BLOG12 at checkout, and enjoy the combo discount and free shipping.

💡 About SOTF Real-Time Power Switching

The EZ Lynk Auto Agent3 device supports SOTF functionality — allowing real-time switching between different power levels via an external SOTF switch. Note that the SOTF switch is not a standard accessory; it must be purchased separately, approximately $50, and is only activatable if the tuning file you select includes multi-level power settings.

Why Choose SuncentAuto's Combination Solution?

1. Full Compatibility with 2022 6.7L Cummins, No ECM Swap Required

Traditional solutions require purchasing an additional 2019-2021 ECM for replacement, which is costly and complex.

SuncentAuto's EZ Lynk custom tuning file is designed specifically for the 2022-2024 encrypted ECM. Together with the EZ Lynk Auto Agent3 device, flashing is done directly via the OBD port, completely eliminating the need for an ECM swap.

2. EZ Lynk Smart Tuning, Beginner-Friendly

The EZ Lynk Auto Agent3 is a globally leading diesel tuning platform. Tuning flashes can be completed via the iOS or Android mobile app, taking about 30 minutes, with no need for a computer.

3. Highly Competitive Price, Low Entry Barrier

The hardware kit base price is only $395.76, far lower than competitors that often cost over a thousand dollars. The software covers full delete functionality, saving over $1,500 compared to traditional ECM swap full solutions, and there is no need to purchase extra ECM hardware.

4. Reliable Hardware Material, Color/Spec Options

The 4-inch DPF delete pipe uses T409 stainless steel for excellent corrosion resistance.

The EGR delete kit is available in color options such as red and silver; the DPF delete pipe is available in different types. Users can choose according to personal preference.

All components are OEM-fit, requiring no cutting or welding, and can be restored to factory condition if needed after installation.

5. Worry-Free Shipping, Returns & Technical Support

SuncentAuto offers free shipping on orders to the contiguous 48 U.S. states, as well as a 45-day return guarantee. After purchasing a product, you receive professional technical support. You can also reach the technical team at any time via online chat, email, or phone.

2022 Ram 2500/3500 Delete Kit Basic Installation Steps and Precautions

Important Reminders Before Installation

This kit is for Off-Road / Race-Use Only, not a legal modification for street driving.

Tuning must come first: Before installing any hardware, you must first complete the ECM tuning file flash ; otherwise, the vehicle will not start properly.

Ensure your vehicle is running the latest Beta software; otherwise the ECM may be damaged.

Difficulty Rating & Time Estimate

Difficulty Level: Medium-high; professional shop assistance is recommended.

Typical Time: DPF delete pipe: 1-2 hours; EGR delete: 2-4 hours; ECM tuning: 20-40 minutes.

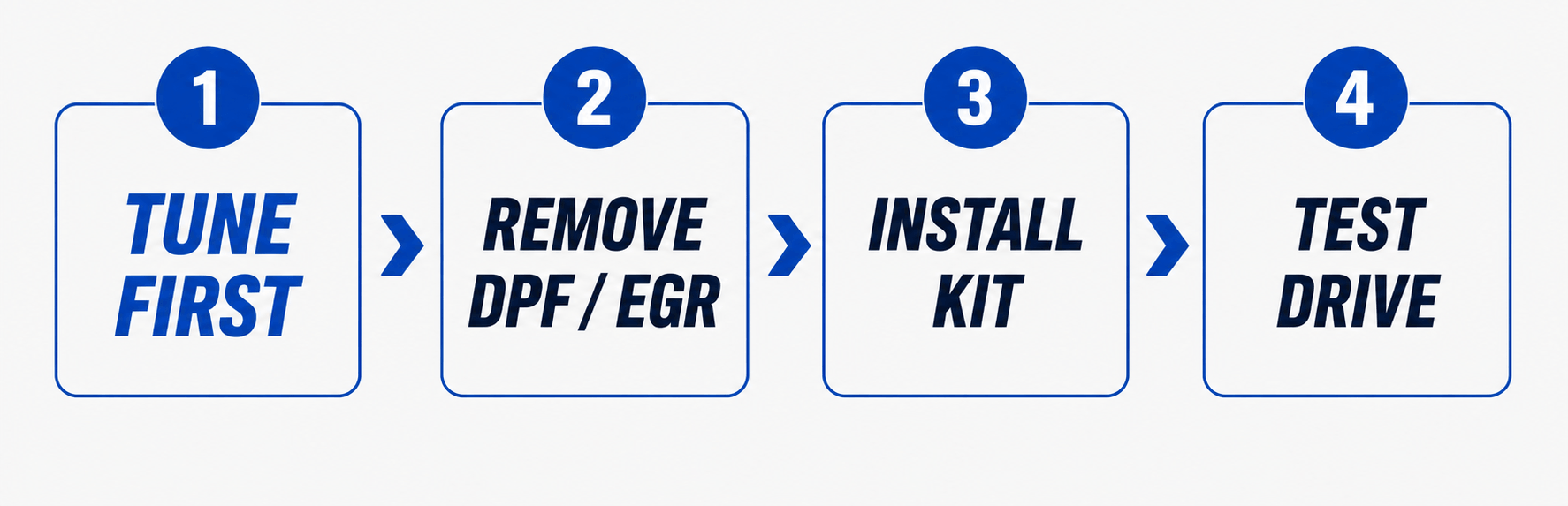

Brief Installation Steps

Phase 1: Preparation

1. Park the vehicle on level ground, set the parking brake, disconnect the negative battery terminal.
2. Allow the exhaust system to cool completely, spray penetrating lubricant on all exhaust connections.

Phase 2: ECM Tuning — Must Be Done First

3. Connect the tuning device to the OBD-II port. 2018+ Cummins also require a Bypass cable.
4. Load the custom delete tuning file via the EZ Lynk mobile app, wait for the flash to complete and verify success.

Phase 3: DPF/EGR Hardware Removal

5. Raise and secure the vehicle, remove exhaust heat shields, disconnect DPF sensors, and remove the DPF assembly.
6. Following the EGR delete kit manual, remove the EGR valve, EGR cooler, and related lines.
7. Install the DPF delete pipe and EGR block-off kit, using the new gaskets and hardware to secure.

Phase 4: Final Check & Road Test

8. Reconnect the battery, start the engine, and check the exhaust system for leaks.
9. Take a short test drive, observing engine response and warning light status.

⚠️ Important Notes

The tuning flash must be completed before removing any hardware; otherwise, the vehicle will fail to start or enter limp mode.

For EGR delete, it is recommended to install both the EGR valve block-off plate and the cooler bypass component.

Keep all removed factory parts for future restoration or when selling the vehicle.

📘 Detailed Installation Manuals

• EZ Lynk Auto Agent 3 Tuning Guide PDF
• EGR Delete Kit Installation Manual PDF
• DPF Delete Pipe Installation Manual PDF

If you have any installation questions, SuncentAuto's technical team provides remote assistance. Contact them via online chat, email support@suncentauto.com, or phone 1-626-548-6689.

Conclusion

The delete kit is a hardware solution designed for competition vehicles or dedicated off-road use that pursue maximum performance.

After deleting the emissions system on the 2022 Ram 2500/3500 6.7L Cummins, you can generally achieve 80–150 HP gain, a 3–4 MPG fuel economy improvement, and elimination of long-term emissions system failure risks.

However, the price of these performance benefits is legal risk — deleting emissions control devices remains a federal violation in the United States.

If you decide to proceed with this modification, ensure that:

• You fully understand and accept all legal and financial risks.
• The ECM tuning is completed before any hardware removal.
• You keep the factory parts for restoration or resale.

If you are looking for a fully compliant performance upgrade path, consider emissions-compliant tuning, high-performance intake systems, or compliant cat-back exhaust upgrades - these solutions will not put you in legal jeopardy.
