P0402 Code Explanation - EGR Excessive Flow Detected

When the engine fault light on the dashboard lights up, 85% of car owners will choose to ignore it - this decision may increase the subsequent maintenance costs by 3 times. Take the P0402 code as an example. Its occurrence rate on Ford F-150, Toyota Prado, 6.7 Powerstroke and other models is as high as 23%. If it is not handled for a long time, it will lead to:

• Fuel consumption;
• Premature scrapping of the three-way catalytic converter;
• Diesel vehicle DPF system blockage;

If you see this code, don't worry, let's learn the meaning, cause and solution of the P0402 fault code, which can save you time, money and trouble.

What Does the P0402 Code Mean?

P0402 means: exhaust gas recirculation (EGR) Excessive Flow Detected, in contrast to P0401 (insufficient flow).

Your vehicle's engine control unit (ECU) closely monitors the EGR system to ensure it is functioning properly. When the ECU detects excessive exhaust gas recirculation (EGR) backflow, it flags the P0402 code. Excessive flow can disrupt the engine's air-fuel mixture, causing performance and efficiency issues.

What Is the EGR System?

The EGR system helps reduce nitrogen oxide (NOx) emissions by redirecting some of the engine's exhaust gas back into the intake. This process lowers combustion temperatures, which reduces harmful emissions.

How Does the ECU Determine Abnormalities?

By comparing three key parameters:

• DPFE sensor (Ford only): monitors the pressure difference before and after the EGR valve;
• MAP sensor: changes in intake manifold pressure;
• Oxygen sensor: abnormal exhaust oxygen content.

5 Typical Symptoms of P0402 Code

Common Causes of the P0402 Code

Several components in the EGR system can cause the P0402 code. Here are the most common causes:

• Faulty EGR valve: If the EGR valve is stuck open, it will continue to allow exhaust gas into the intake system, causing excessive flow. (Most Common Cause)
• Clogged EGR Ports or Lines: Carbon deposits or debris can clog the EGR passages, causing backflow or unregulated flow.
• Faulty EGR Cooler: A leaking or damaged EGR cooler can introduce extra exhaust gas into the intake manifold.
• Circuit Problems: Corroded or broken wires can cause sensor readings to be communicated incorrectly to the ECU.
• Vacuum Leaks or Damaged EGR Solenoid: These parts regulate the EGR valve, and any failure can cause incorrect flow.
• Faulty EGR Sensor: Issues with the EGR position sensor or differential pressure feedback sensor (DPFE) can mislead the ECU into detecting excessive flow.

P0402 Codes for Specific Vehicles

Certain models show unique tendencies when the P0402 fault code occurs. Let's take a closer look at how it manifests in common makes and models:

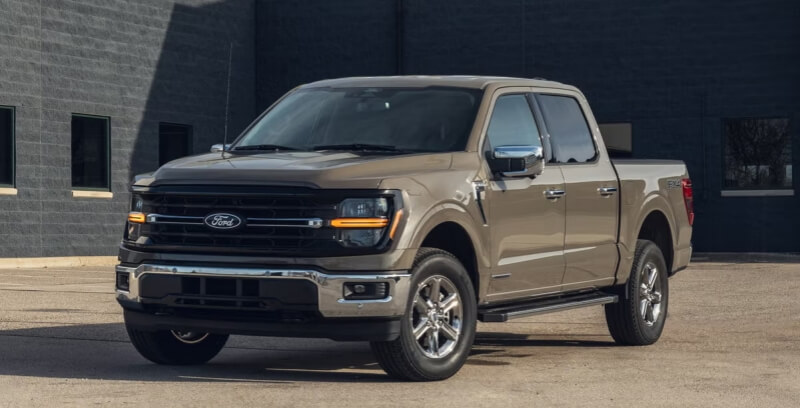

1. Ford P0402 (F-150, 6.7 Powerstroke, etc.)

Common causes: DPFE sensor failure or EGR valve sticking.

Solution: Check and replace the DPFE sensor, and check the wiring. (The DPFE sensor is usually located near the EGR valve on the firewall or intake manifold.)

2. Toyota P0402

Common cause: Carbon deposits in the EGR passage.

Solution: Clean the EGR passage.

3. Cummins P0402 (6.7L Diesel)

Common cause: Diesel engines such as the Cummins 6.7L are prone to EGR cooler and valve failures.

Solution: The EGR cooler and valve need to be thoroughly checked.

4. 6.7 Powerstroke P0402

Common cause: The EGR system in the 6.7 Powerstroke may fail due to soot buildup.

Special Tip: Combine EGR cleaning with injector and DPF system checks for best results.

How to Fix the P0402 Problem Code

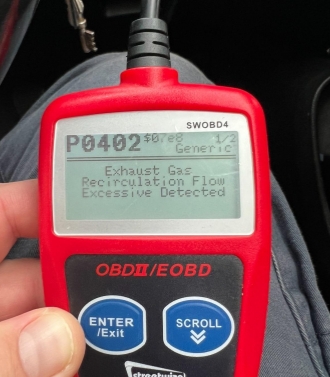

Step 1: Scan for Trouble Codes

Use an OBD-II scanner to confirm the P0402 code and check for related issues.

Step 2: Check the EGR Valve

Check the EGR valve for sticking or leaking. Clean, repair, or replace if necessary.

Step 3: Clean the EGR Ports and Lines

Remove any carbon deposits or debris that is blocking the EGR passages. A special cleaning spray can help.

Step 4: Check the EGR Cooler

Check the EGR cooler for leaks or damage. Replace if necessary.

Step 5: Test the EGR Sensor

A faulty sensor (such as the DPFE sensor on Ford vehicles) may need to be replaced. Test its functionality to confirm.

Step 6: Clear the Code

After completing the repair, reset the P0402 code using an OBD-II scanner.

Additional Tip: Is EGR Delete Worth It?

Many car owners choose to delete EGR to prevent the problem from happening again, which can indeed permanently prevent EGR problems and save a lot of repair and replacement costs. But is it worth it? Let's look at the pros and cons of removing EGR.

Pros:

• Reduces clogging;
• Better engine performance;
• Improved MPG on some diesel engines;
• Saves a fortune on EGR repair and replacement.

Cons:

• Illegal in many areas due to emissions regulations;
• Increased emissions, polluting the environment.

Conclusion

The P0402 code is more than just a minor annoyance, it is a warning sign. If not resolved, it may lead to reduced performance, increased fuel consumption, and emission issues. We recommend that you pay attention and resolve the issue promptly. If the problem is complex and cannot be determined, it is recommended to leave it to professionals.

FAQs

1. What does DTC P0402 mean?

DTC (Diagnostic Trouble Code) is a diagnostic trouble code. P0402 means that the engine control unit (ECU) has detected that the gas flow of the exhaust gas recirculation (EGR) system is too large and exceeds the normal parameter range.

2. Is P0402 a serious problem?

Yes, although it will not cause the vehicle to stall in the short term, long-term neglect may cause engine performance degradation, increased fuel consumption, excessive emissions, and even damage to engine components.

3. Can a faulty EGR valve cause P0402?

Yes. An EGR valve stuck in the open position is one of the most common causes of triggering P0402, causing too much exhaust gas to be introduced into the intake manifold.

4. Why does my Cummins 6.7L keep getting P0402?

Common causes include:

• EGR cooler leak or blockage;
• Abnormal turbocharger back pressure;
• Abnormal flow caused by soot and carbon deposits.

5. Can disconnecting the EGR valve fix P0402?

Not recommended. Although it may temporarily clear the code, it will trigger other fault codes, resulting in emission test failures and may also be illegal.

6. How much does it cost to fix the P0402 code?

EGR valve replacement: $200 to $600 (parts + labor).

Sensor replacement: $50 to $200.

Software update: $100 to $250 at the dealer.

7. Can I still drive with the P0402 fault code?

You can drive in the short term, but you may feel a lack of power and increased fuel consumption. But is not recommended for long-term driving because abnormal exhaust gas flow may cause serious consequences such as engine carbon deposits and overheating.

8. How to prevent the P0402 fault code from recurring?

• Use high-quality fuel and additives to reduce carbon deposits.
• Perform regular EGR system maintenance (especially on diesel engines).
• Avoid short-distance driving (to prevent EGR system clogging).
• EGR removal (save money but be aware of the law).
